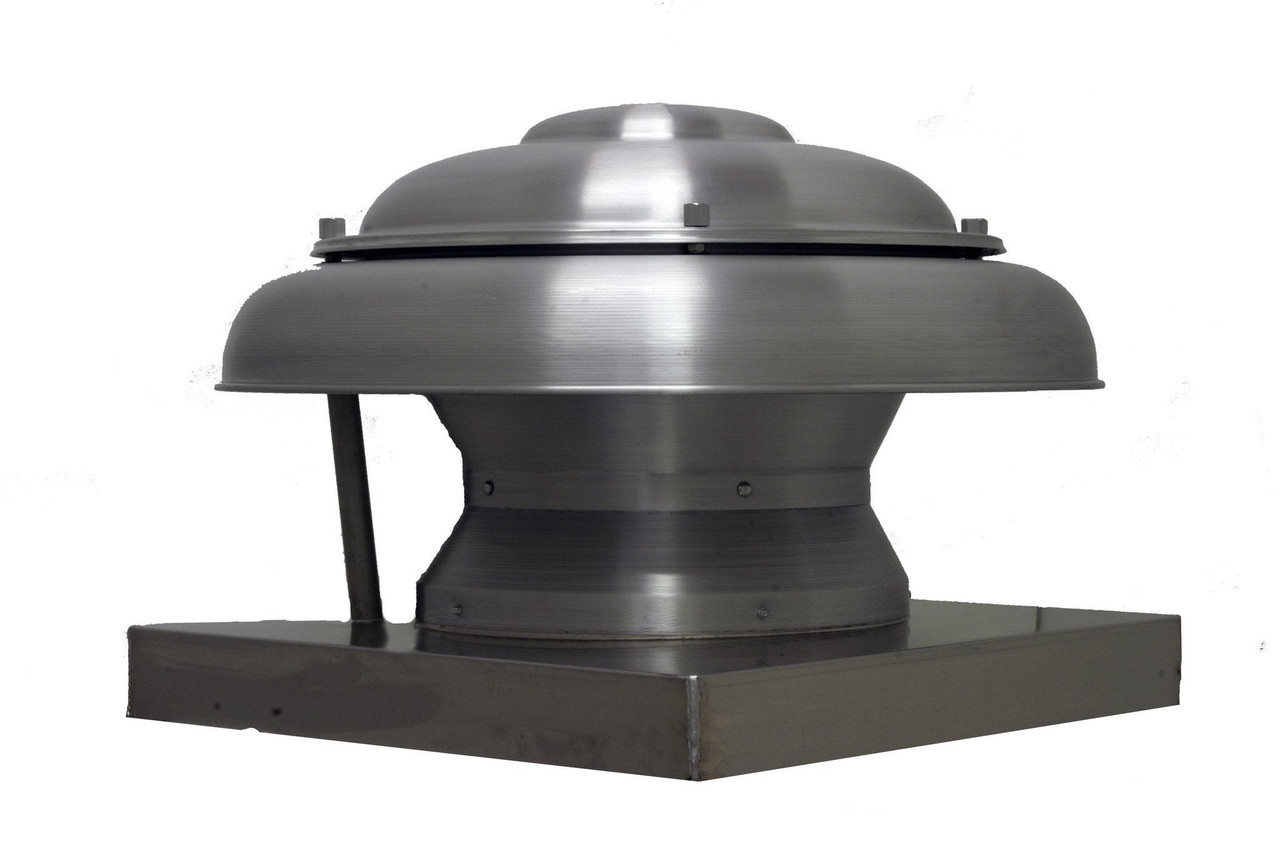

ARS Dome Roof Supply 16 inch 1742 CFM ARS16MM1CS

The AR series offers powerful axial intake (ARS) or exhaust (ARE) performance in a roof mount design that is compact, lightweight an easy to install.

The AR series is an excellent choice for factories, shops, restaurants, bathrooms, offices, schools and other similar applications where light to moderate static pressures are present.

The low contour designs and all aluminum housing provides a modern, clean appearance in addition to excellent performance and durability. The direct drive design has no belts or fan bearings to maintain or adjust and consequently requires very little maintenance.

FEATURES
Heavy-gauge all aluminum housing.
Exclusive U-Spring suspension compensates for both radial and lateral movement and provides 44% better vibration isolation than rubber isolators.
External wiring chase for easy connection.
Quick access to motor compartment for easy maintenance.
Standard motors are single speed, speed controllable and drip-proof.
All motors are rated for continuous duty.
Disconnect is standard on ODP motors.
Units are tested in accordance with AMCA 301 (Sound) and AMCA 210 (Air).
