AX Green Series Exhaust Fan w/ Shutters 12 inch Variable Speed 1650 CFM Direct Drive AX12-EC

Specs Details Downloads

Specs for AX Green Series Exhaust Fan w/ Shutters 12 inch Variable Speed 1650 CFM Direct Drive AX12-EC

Amp: 2.8 / 1.7 / 1.3 Blade Diameter: 12.0" Blade Material: Heavy Duty Aluminum CFM: 1650 Dimensions: 16.75" x 16.75" x 16 Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1/4 Made in the USA: No Motor Type: TEFC Phase: 1 Phase RPM: 1800 Speed(s): Variable Speed Voltage: 115 / 208 / 230 AC Warehouse: New York Warranty: 1 Year

All variable speed fans will run at a single speed unless used with a controller. Please see our control optionsherefor a control that pairs with this fan.

The AX-EC series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings.

Models are equipped with variable speed, high efficiency EC motors. The AX-EC series housings are constructed of heavy-duty aluminum, with built in shutters that automatically open when the fan starts and closes by gravity, when the fan stops.

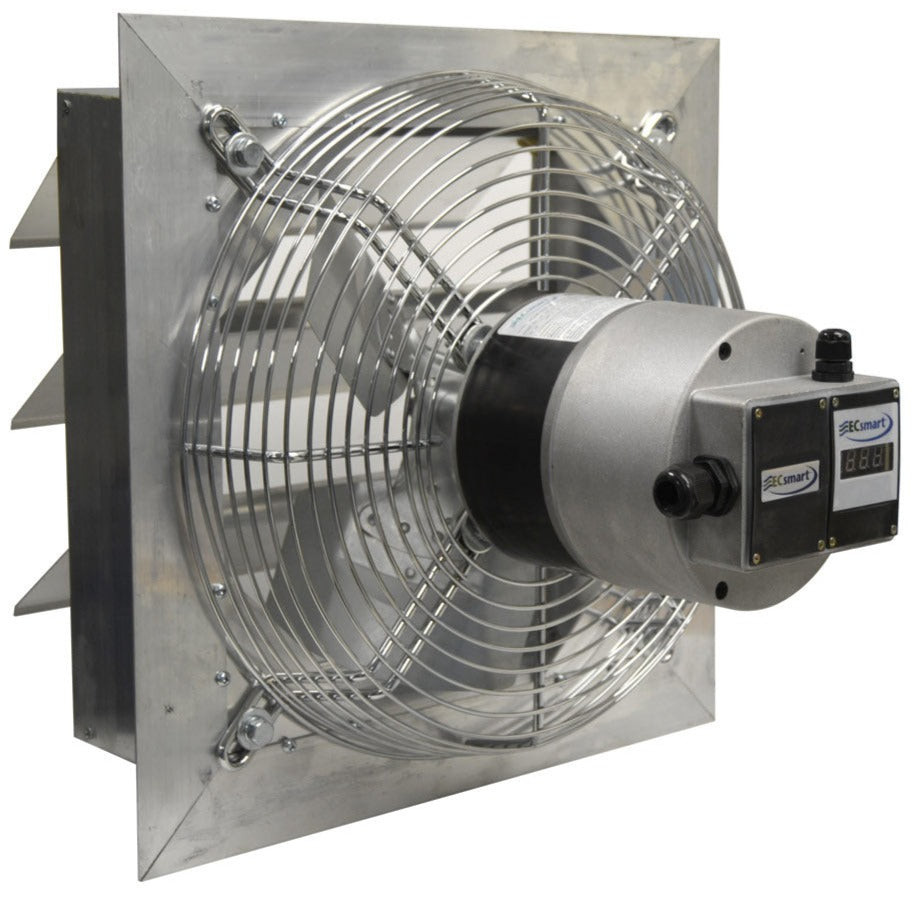

*Photo is a representation of the fan. Number of Louvers vary with fan size*

FEATURES

AX12 - 3 Louvers

Sturdily constructed from all-aluminum extrusions.

8‚Äù - 20‚Äù models have heavy wire chrome plated OSHA guards on intake side of fan.

Variable speed, high efficiency EC motor.

Ships fully assembled.

DIMENSIONS
A = 16-34"
B = 13-3/4"
C = 5"
D = 11"

Framing Dims: 14" x 14"
