AX Wall Exhaust Fan 16 inch 2 Speed 2580 CFM Direct Drive AX16-3
Canarm
Item #: AX16-3
Blade Diameter
16.0"
CFM
2580
Phase
1 Phase
Voltage
115 AC
Specs for AX Wall Exhaust Fan 16 inch 2 Speed 2580 CFM Direct Drive AX16-3
Amp: 3.4
Blade Diameter: 16.0"
Blade Material: Aluminum
CFM: 2580

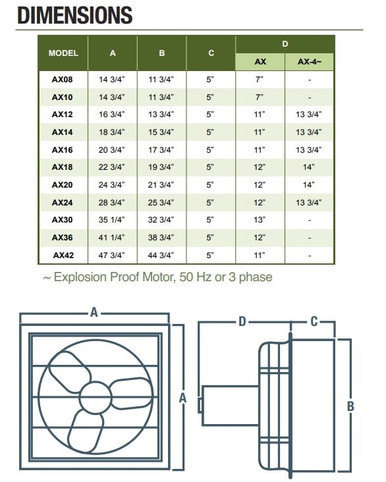

Dimensions: 20.75" x 20.75" x 16
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
Speed(s): 2 Speed
Voltage: 115 AC
Warehouse: New York
Warranty: 1 Year
The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.
FEATURESThese models have a rugged, sturdily constructed housing made from all aluminum extrusions
Louvers open automatically when the fan starts up and close when the fan stops
8” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan
Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish
Totally enclosed air over motor with overload protection
Fans come fully assembled and 100% of fans are tested for proper operation before shipping
