AX Wall Exhaust Fan 18 inch 2 Speed 3200 CFM Direct Drive AX18-3

Specs Details Downloads

Specs for AX Wall Exhaust Fan 18 inch 2 Speed 3200 CFM Direct Drive AX18-3

Amp: 5.5 / 2.9 Blade Diameter: 18.0" Blade Material: Aluminum CFM: 3200 Dimensions: 22.75" x 22.75" x 16.25 Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1/3 Made in the USA: No Motor Type: TEFC Phase: 1 Phase RPM: 1725 / 1140 Speed(s): 2 Speed Voltage: 115 AC Warehouse: New York Warranty: 1 Year

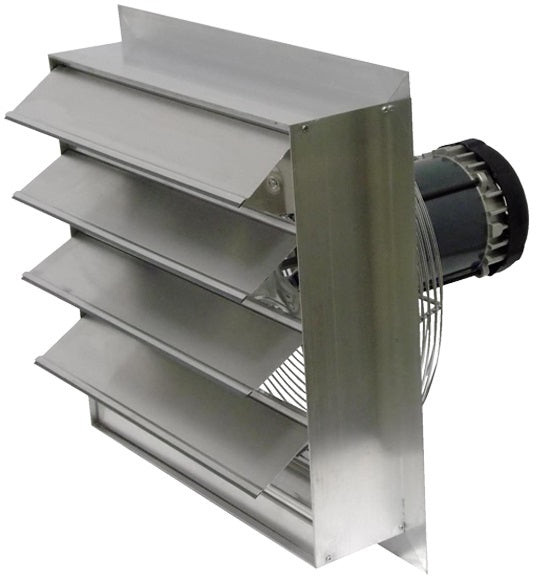

The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

FEATURES

AX18 - 5 Louvers

These models have a rugged, sturdily constructed housing made from all aluminum extrusions

Louvers open automatically when the fan starts up and close when the fan stops

8‚Äù - 24‚Äù models have heavy wire chrome plated OSHA guards on intake side of fan

Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish

Totally enclosed air over motor with overload protection

Fans come fully assembled and 100% of fans are tested for proper operation before shipping
