AX Wall Exhaust Fan 20 inch 2 Speed 3640 CFM Direct Drive AX20-3

Specs Details Downloads

Specs for AX Wall Exhaust Fan 20 inch 2 Speed 3640 CFM Direct Drive AX20-3

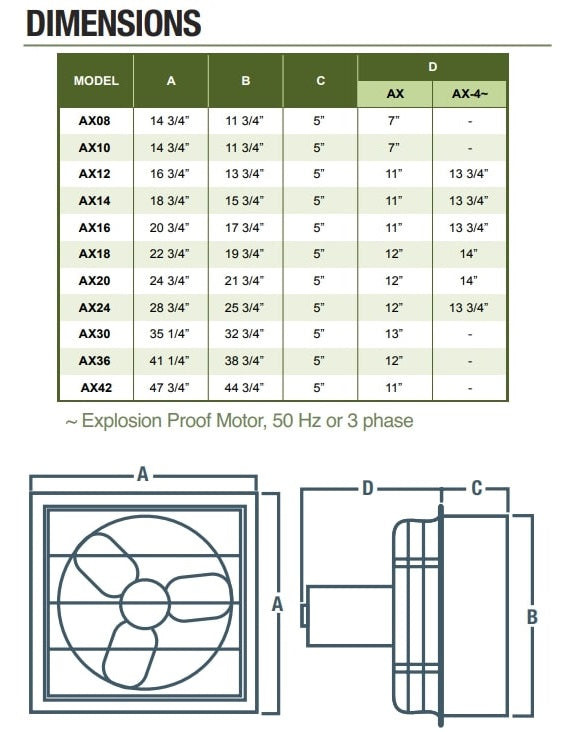

Amp: 5.5 / 2.9 Blade Diameter: 20.0" Blade Material: Aluminum CFM: 3640 Dimensions: 24.75" x 24.75" x 17 Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1/3 Made in the USA: No Motor Type: TEFC Phase: 1 Phase Speed(s): 2 Speed Voltage: 115 AC Warehouse: New York Warranty: 1 Year

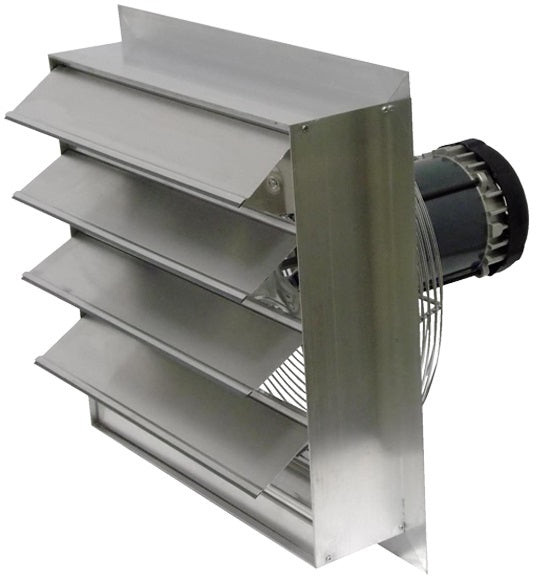

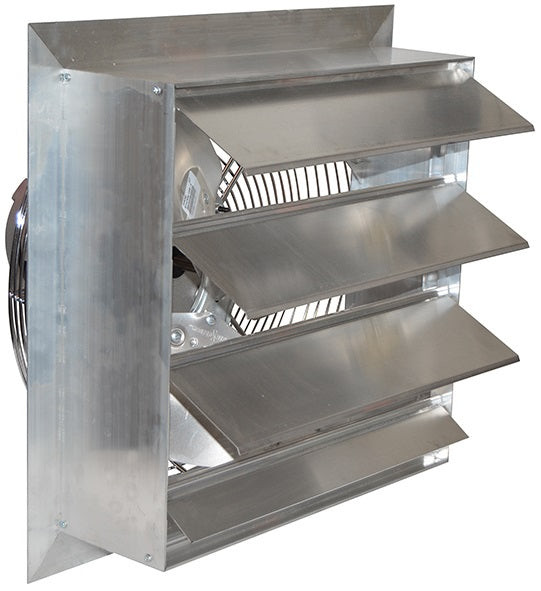

The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

FEATURES
AX20 - 5 Louvers
These models have a rugged, sturdily constructed housing made from all aluminum extrusions
Louvers open automatically when the fan starts up and close when the fan stops
8‚Äù - 24‚Äù models have heavy wire chrome plated OSHA guards on intake side of fan
Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish
Totally enclosed air over motor with overload protection
Fans come fully assembled and 100% of fans are tested for proper operation before shipping
