AX Explosion Proof Aluminum Wall Exhaust Fan w/ Shutters 24 inch 5520 CFM 3 Phase AX24-4M

Specs Details Downloads

Specs for AX Explosion Proof Aluminum Wall Exhaust Fan w/ Shutters 24 inch 5520 CFM 3 Phase AX24-4M

Amp: 1.4 Blade Diameter: 24.0" Blade Material: Aluminum CFM: 5520 Dimensions: 28.75" x 28.75" x 18.75 Drive Type: Direct Hertz: 60 Horsepower: 1/3 Made in the USA: No Motor Type: Explosion Proof Phase: 3 Phase RPM: 1800 Speed(s): 1 Speed Voltage: 208 / 230 / 460 AC Warehouse: New York Warranty: 1 Year

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

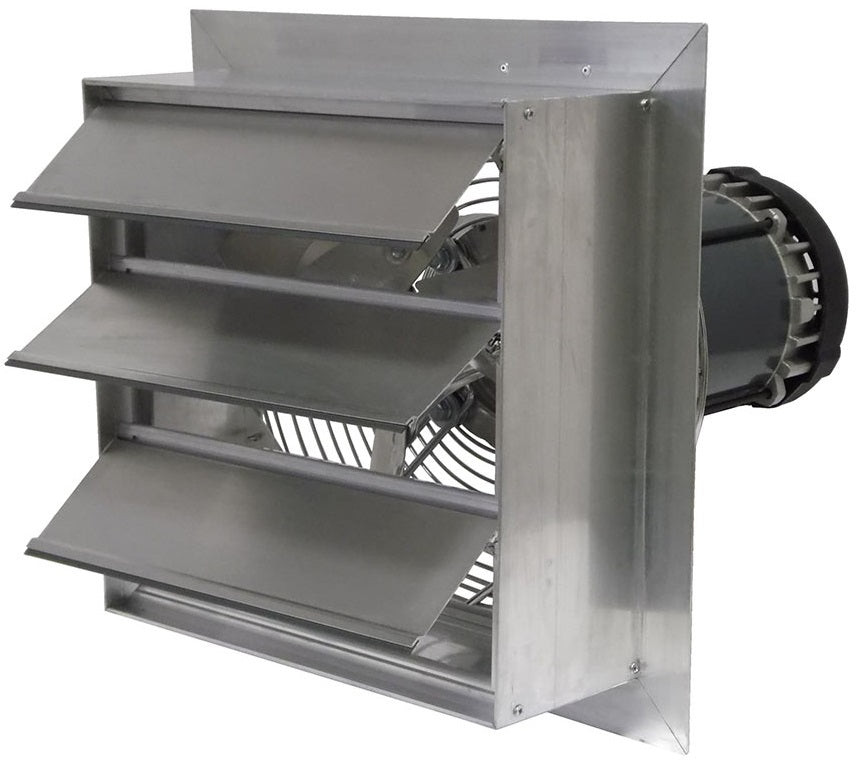

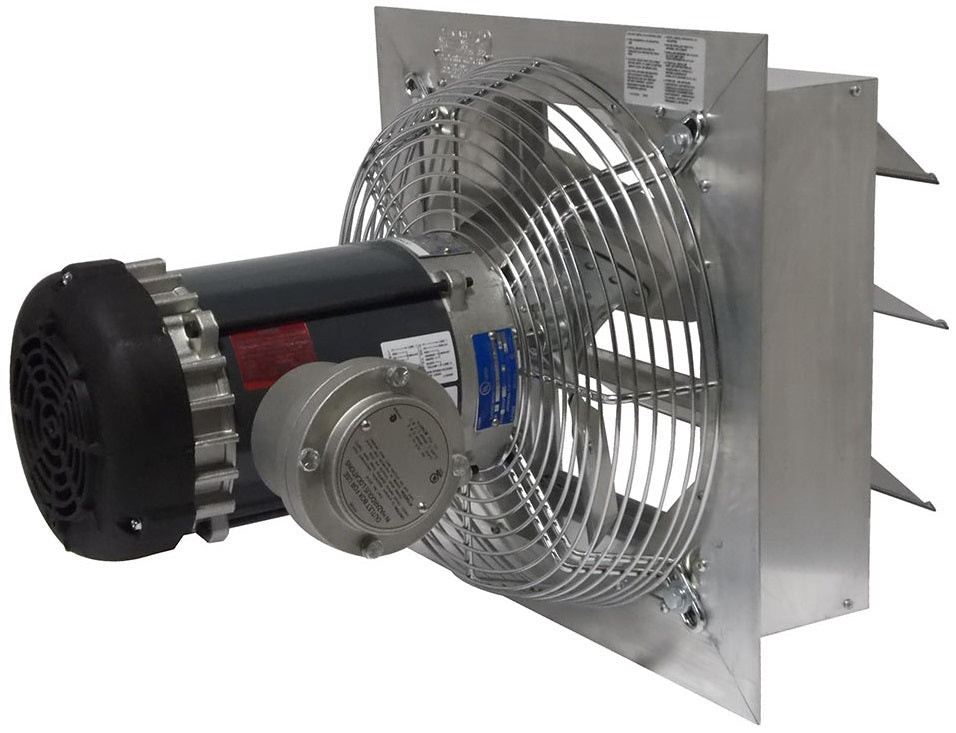

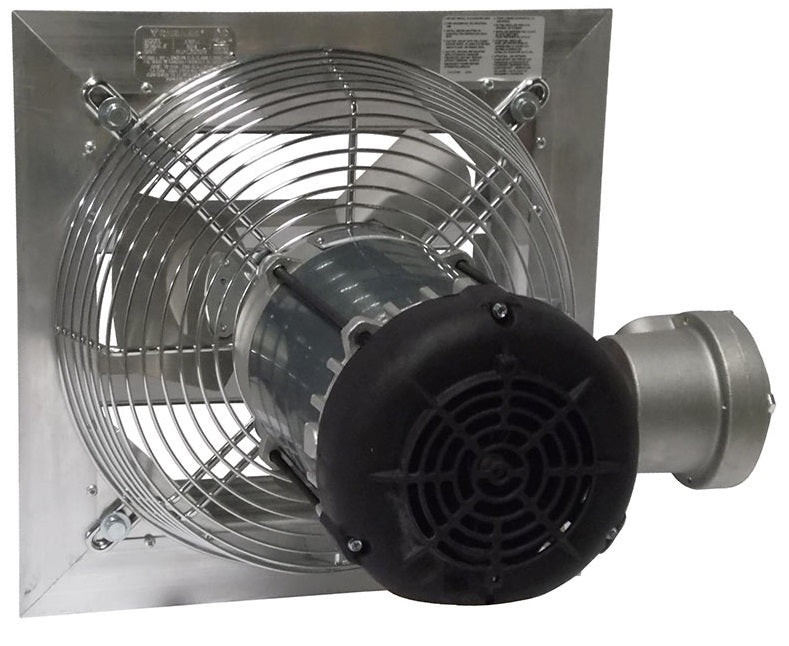

The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

MOTOR CLASSIFICATION
Class I - Group C & D
Class II - Group F & G

FEATURES
AX24 - 6 Louvers
Sturdily constructed from all-aluminum extrusions
Standard heavy duty OSHA motor mount guard
Motors are totally enclosed, air over with overload protection
