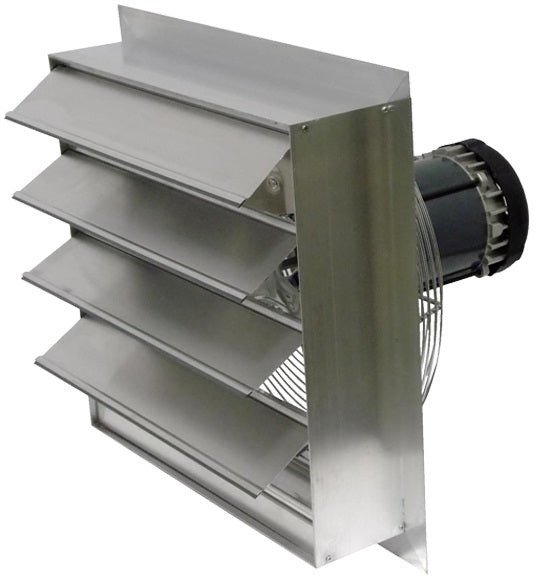

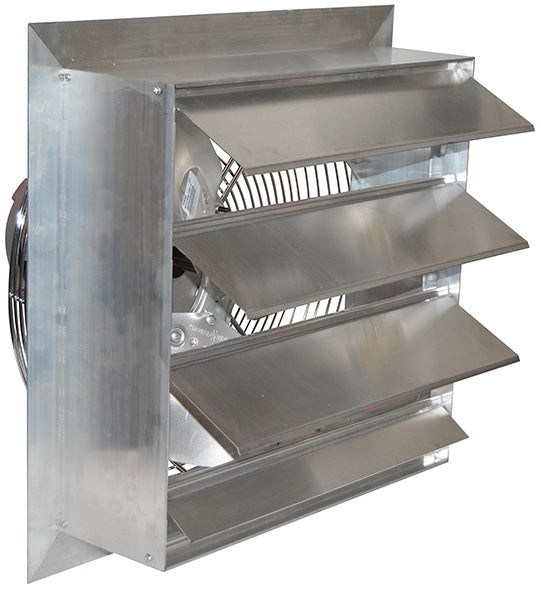

AX Wall Exhaust Fan 30 inch 8000 CFM Direct Drive AX30-2
Canarm
Item #: AX30-2
Blade Diameter
30.0"
CFM
8000
Phase
1 Phase
Voltage
115 / 230 AC
Specs for AX Wall Exhaust Fan 30 inch 8000 CFM Direct Drive AX30-2
Amp: 4.4 / 2.2
Blade Diameter: 30.0"
Blade Material: Aluminum
CFM: 8000
Dimensions: 35.75" x 35.75" x 18
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1100
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.
FEATURESAX30 - 8 Louvers
Single Speed
Have a rugged, sturdily constructed housing made from all aluminum extrusions
Louvers open automatically when the fan starts up and close when the fan stops
30” fans and larger have powder coated guards
Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish
Totally enclosed air over motor with overload protection
Fans come fully assembled and 100% of fans are tested for proper operation before shipping.
