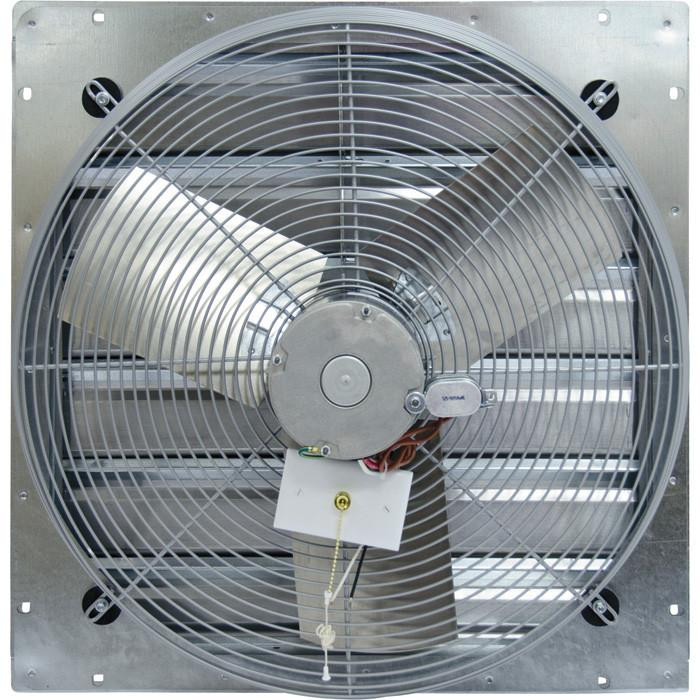

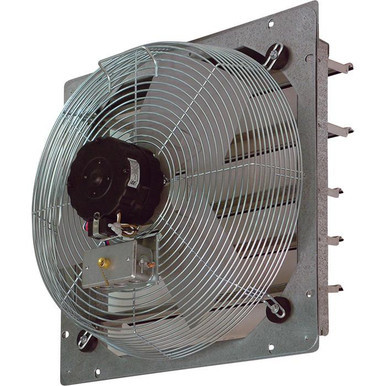

TPI Wall Exhaust Fan w/ Shutters 2 Speed 30 inch 3950 CFM CE30-DS
TPI Corporation
Item #: CE30DS
Blade Diameter
30.0"
CFM
3950
Phase
1 Phase
Voltage
120 AC
Specs for TPI Wall Exhaust Fan w/ Shutters 2 Speed 30 inch 3950 CFM CE30-DS
Amp: 2.7
Blade Diameter: 30.0"
Blade Material: Aluminum
CFM: 3950
Drive Type: Direct
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1140
Speed(s): 2 Speed
Voltage: 120 AC
Warehouse: Tennessee
Warranty: 1 Year
NOTE: ROUGH-IN HOLE SIZE IS 0.5" LARGER THAN FAN BLADE SIZE.
FEATURES
Can be installed from inside wall
Eliminates need for external framing and shutter
Pull chain switch
No Cord-Junction box provided for direct wiring
Aluminum blade
Steel spiral wire guards
Made in U.S.A. with domestic and foreign components.
Max Temperature is 102 degrees Fahrenheit
