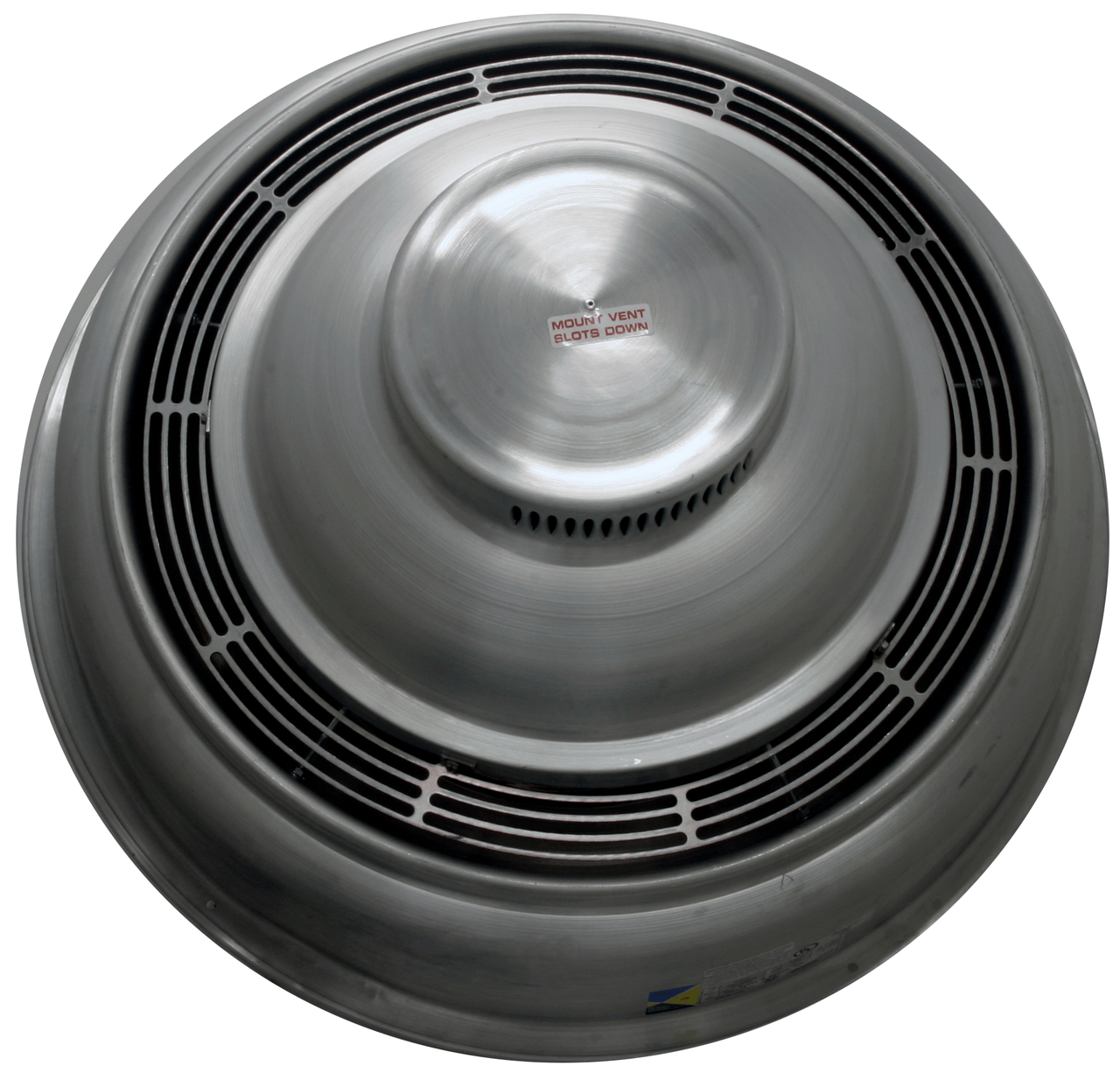

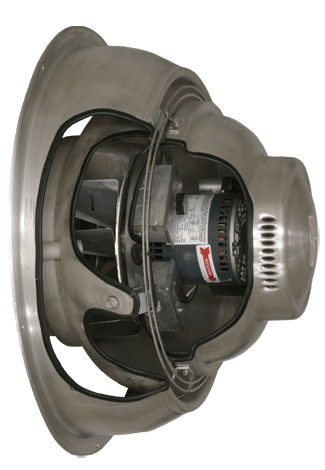

CWD Centrifugal Wall Exhaust 12 inch 1583 CFM CWD12MM1AS
Specs for CWD Centrifugal Wall Exhaust 12 inch 1583 CFM CWD12MM1AS
Centrifugal Wall Mounted Exhauster Direct Drive Fans (CWD) are designed to exhaust air up to 3,360 CFM, with high static pressure capability up to 1". The spun aluminum exterior provides a pleasing appearance, weatherproof construction, and resistance to corrosion. The low silhouette design is less noticeable on the building exterior, and the removable dome provides easy access to the fan interior for service and cleaning. The non-overloading backward inclined centrifugal wheel with its high static pressure capability makes it suitable for either ducted or non-ducted applications. It should be used where a sidewall mounted location is preferred to roof mounting. Direct drive units use smaller diameter wheels with lower RPM's, resulting in low sound levels and quieter operation. They have no belts or fan bearings to maintain or adjust and consequently require very little maintenance.
CWD's are used to exhaust relatively clean air from a variety of industrial, commercial and institutional buildings such as machinery and equipment rooms, storage areas, office buildings, restaurants, retail stores, schools and similar buildings.
FEATURESTemperature rating up to 140° F
Comes standard with open drip-proof motor
5 year warranty on housing, 1 year warranty on motor
Spun aluminum dome for weather protection
Water-tight construction
Wheel is statically and dynamically balanced for smooth, quiet operation
