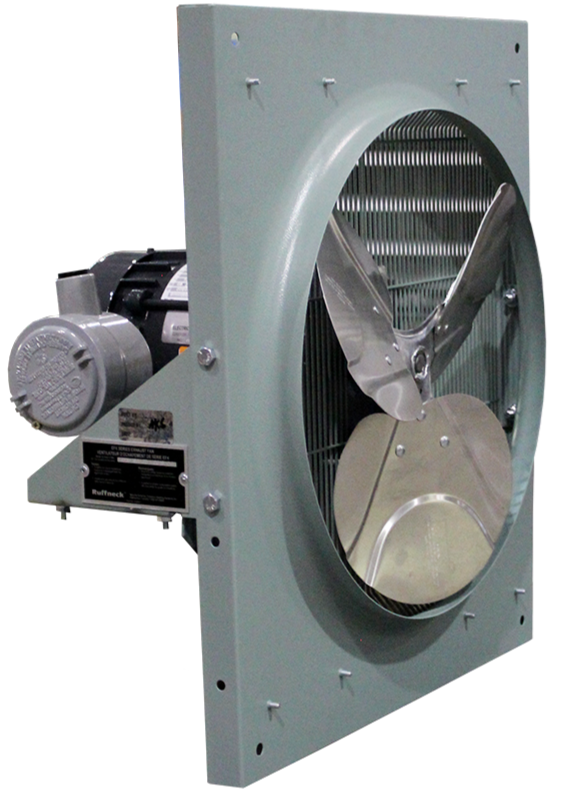

EFX Series Explosion Proof Exhaust Fan 24 inch 4180 CFM 1 Phase 208 Volt EFX-24A-2B

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

Specifically designed for both hazardous and general purpose industrial applications, the Ruffneck EFX Explosion-Proof Exhaust Fan is built for safety and durability. A number of optional features are available for customization, including Heresite coating on all non-motor components, backdraft dampers and rain hoods.

MOTOR CLASSIFICATION
Class I, Div 1 & 2, Groups C, D
Class II, Div 1 & 2, Groups E, F, G
All 3 phase motors require a motor starter (supplied by others).

FEATURES
Ambient Temperature: 4°F (-20°C) to 104°F (40°C)
Fan guard split design with close wire spacing, meets OSHA requirements
Motors CSA approved and/or UL listed permanently lubricated ball bearing type with rigid base. Explosion-proof or totally enclosed construction
Frame material16 ga. (0.060" or 1.52 mm) epoxy-coated steel.
Four 3/8" (9.5 mm) diameter holes. Must be mounted to a rigid structure.
