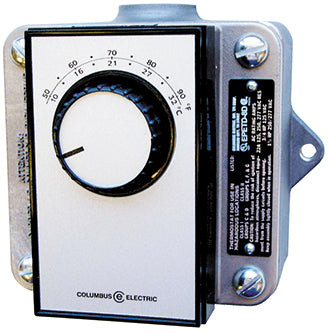

Hazardous Location Single Phase Thermostat Double Pole 50-90 Deg F 120-277 VAC EPETD8D

This Double Pole Double Throw Bi-Metal Unit Mounted Thermostat is for use with single phase Hazardous Location Wall Convectors. Features a plastic temperature adjustment knob and bi-metal room temperature sensor. Field installed, built-in thermostatic design. Load Rating 22A at 120-277VAC. Temperature range of 50-90° F.

FEATURES
Pilot Duty Rating 125VA @ 24VAC
NEMA Class Seven Div. 1 Approved
Class I Group C & D, Class II Group E, F, & G
Heat or cool compatible
Celsius and Fahrenheit temperature scale
Bi-Metal or capillary sensor
Snap action switch
Casting tapped top and bottom for 0.75” conduit
0.5” thick cast aluminum housing
Dimension 5.75” x 6.375” x 5.57”
Made in U.S.A.
