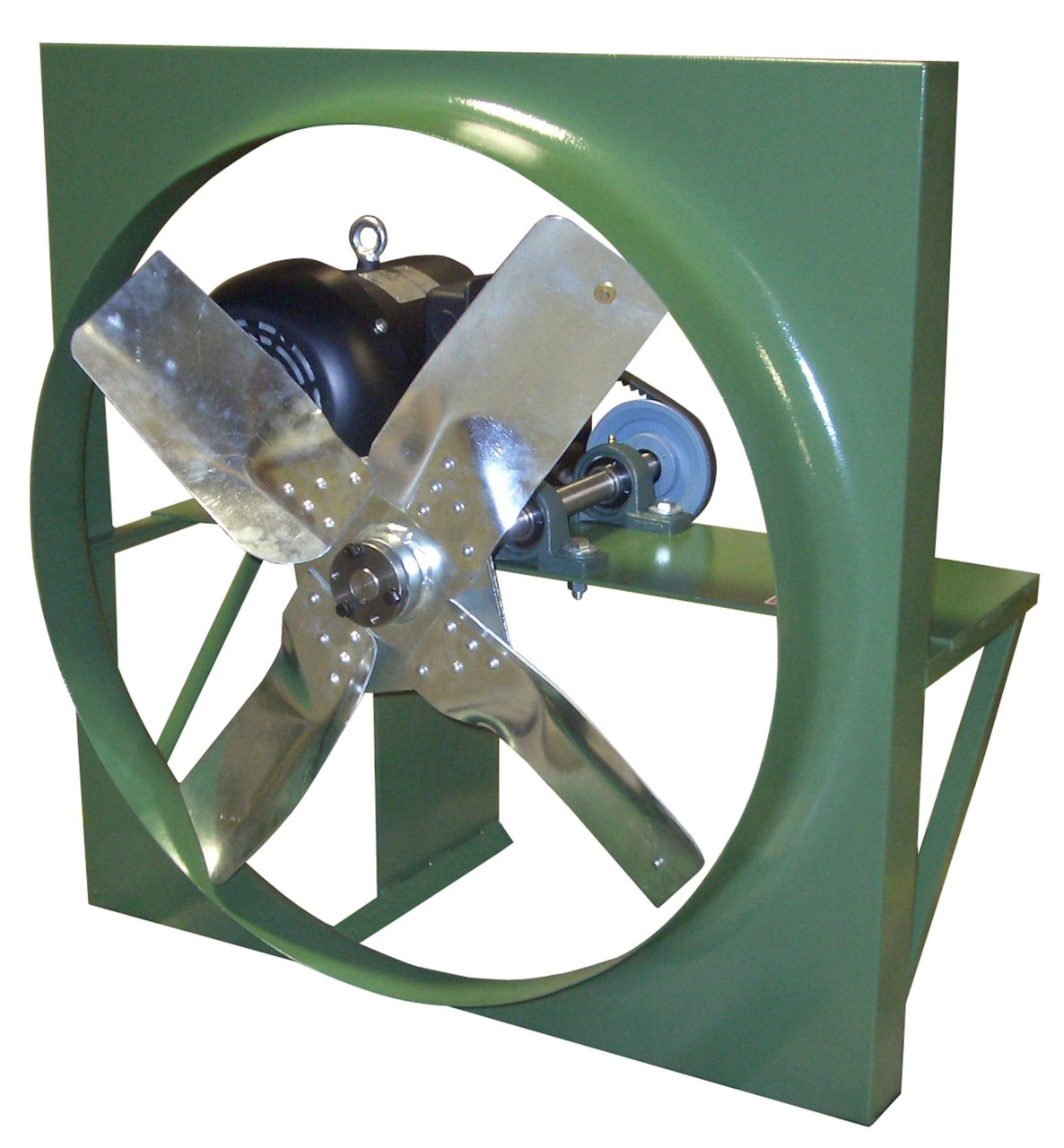

HV Panel Mount Exhaust Fan 48 inch 38970 CFM Belt Drive HV48T10750
Canarm
Item #: HV48T10750
Blade Diameter
48.0"
CFM
38970
Phase
1 Phase
Voltage
230 AC
Specs for HV Panel Mount Exhaust Fan 48 inch 38970 CFM Belt Drive HV48T10750
Blade Diameter: 48.0"
Blade Material: Heavy Gauge Steel
CFM: 38970
Dimensions: 53.625" x 53.625" x 23
Drive Type: Belt
Hertz: 60
Horsepower: 7 1/2
Motor Type: TEFC
Phase: 1 Phase
RPM: 940
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
The HV series is designed and constructed for efficient and economical operations while maximizing performance for heavy duty applications - Factories, Warehouses, Gymnasiums, Underground parking garages, etc.
These fans are typically used for high volume, high static pressure applications.
This fan is used for exhaust applications.
Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
Heavy gauge welded steel motor and bearing supports.
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings.
TEFC motors are standard.
