HV Panel Mount Exhaust Fan 54 inch 45404 CFM Belt Drive HV54T11000
Canarm
Item #: HV54T11000
Blade Diameter
54.0"
CFM
45404
Phase
1 Phase
Voltage
230 AC
Specs for HV Panel Mount Exhaust Fan 54 inch 45404 CFM Belt Drive HV54T11000
Blade Diameter: 54.0"
Blade Material: Heavy Gauge Steel
CFM: 45404

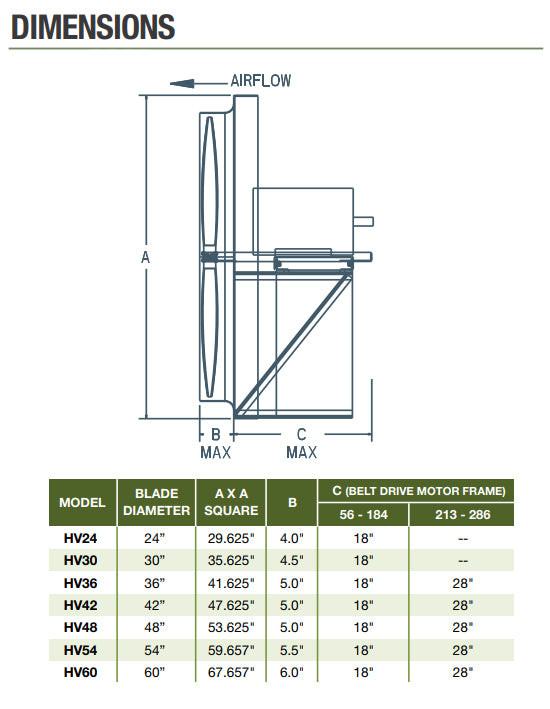

Dimensions: 59.657" x 59.657" x 23.5
Drive Type: Belt
Hertz: 60
Horsepower: 10
Motor Type: TEFC
Phase: 1 Phase
RPM: 800
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
The HV series is designed and constructed for efficient and economical operations while maximizing performance for heavy duty applications - Factories, Warehouses, Gymnasiums, Underground parking garages, etc.
These fans are typically used for high volume, high static pressure applications.
This fan is used for exhaust applications.
Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
Heavy gauge welded steel motor and bearing supports.
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings.
TEFC motors are standard.
