HV Panel Mount Exhaust Fan 60 inch 49580 CFM 3 Phase Belt Drive HV60T30750M
Canarm
Item #: HV60T30750M
Blade Diameter
60.0"
CFM
49580
Phase
3 Phase
Voltage
230 / 460 AC
Specs for HV Panel Mount Exhaust Fan 60 inch 49580 CFM 3 Phase Belt Drive HV60T30750M
Blade Diameter: 60.0"
Blade Material: Heavy Gauge Steel
CFM: 49580

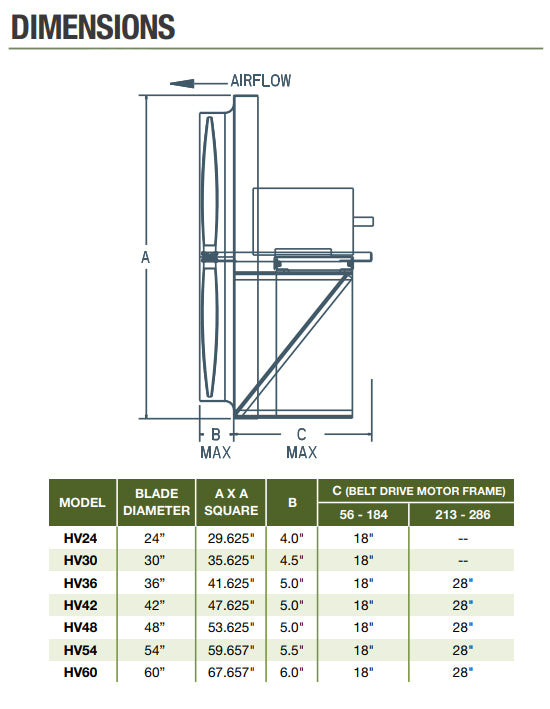

Dimensions: 67.657" x 67.657" x 24
Drive Type: Belt
Hertz: 60
Horsepower: 7 1/2
Motor Type: TEFC
Phase: 3 Phase
RPM: 600
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
The HV series is designed and constructed for efficient and economical operations while maximizing performance for heavy duty applications - Factories, Warehouses, Gymnasiums, Underground parking garages, etc.
These fans are typically used for high volume, high static pressure applications.
This fan is used for exhaust applications.

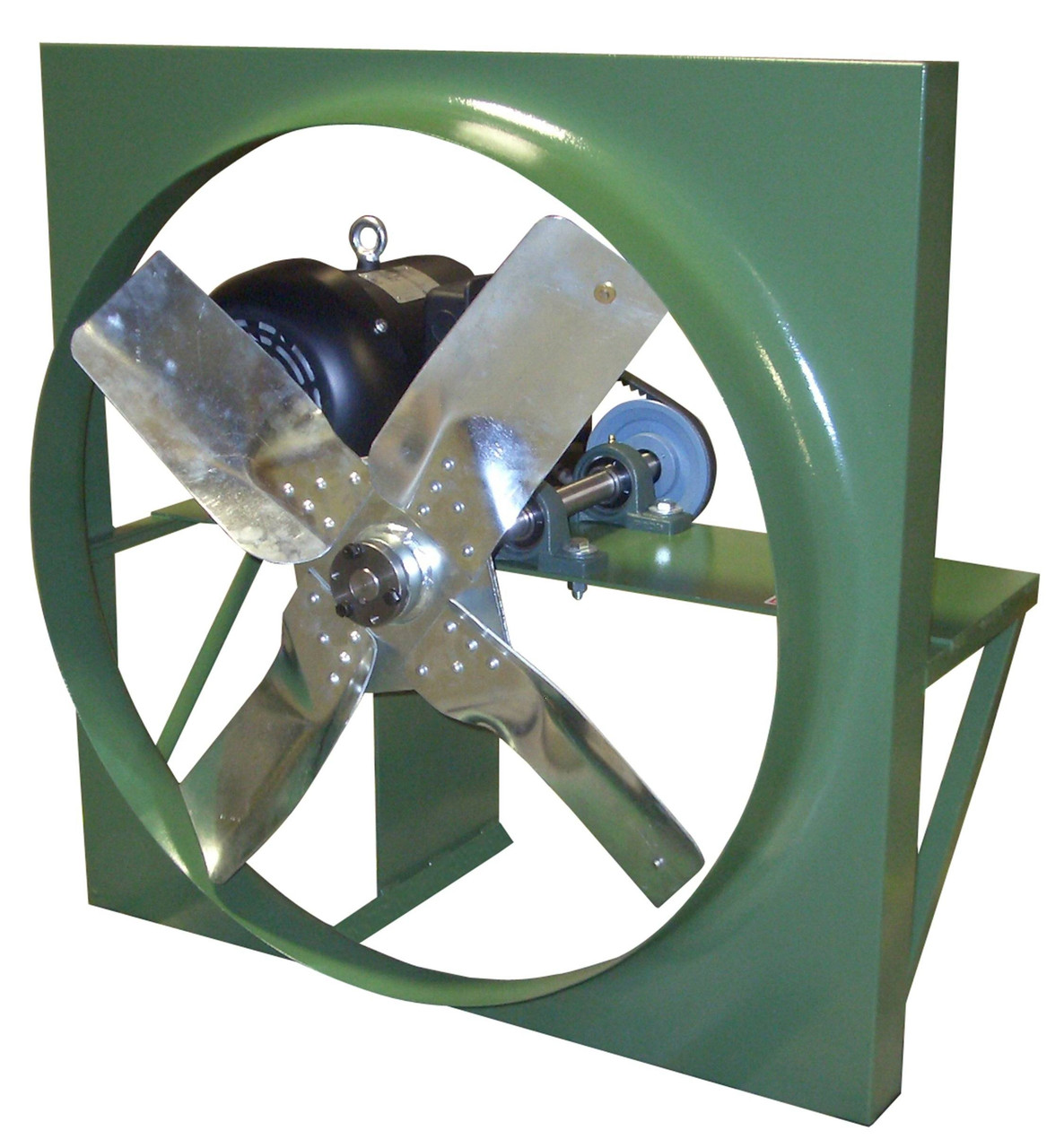

Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
Heavy gauge welded steel motor and bearing supports.
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings.
TEFC motors are standard.
The following file(s) are provided by the manufacturer.
