AirFlo Explosion Proof Hooded Roof Exhauster 24 inch 6696 CFM Belt Drive 3 Phase N1924-E-3-E

Specs Details Downloads

Specs for AirFlo Explosion Proof Hooded Roof Exhauster 24 inch 6696 CFM Belt Drive 3 Phase N1924-E-3-E

Amp: 24.2 / 3.08 Blade Diameter: 24.0" Blade Material: Cast Aluminum CFM: 6696 Drive Type: Belt Hertz: 60 Horsepower: 1 Made in the USA: No Motor Type: Explosion Proof Phase: 3 Phase RPM: 1725 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Ohio Warranty: 1 Year

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 2, Group F & G

FEATURES
Heavy gauge continuously welded curb cap provides watertight construction
Non-sparking cast aluminum propellers for hazardous locations

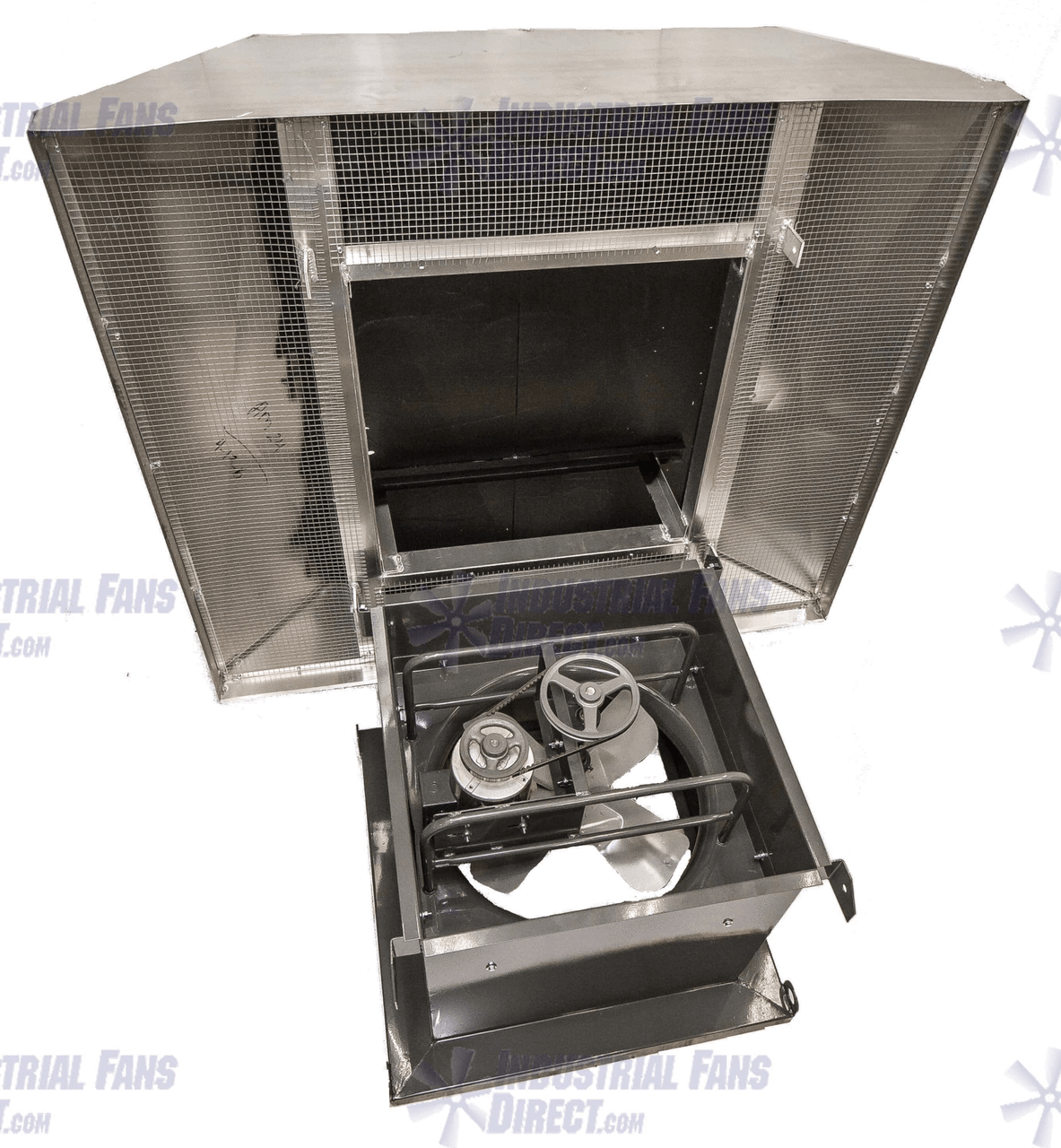

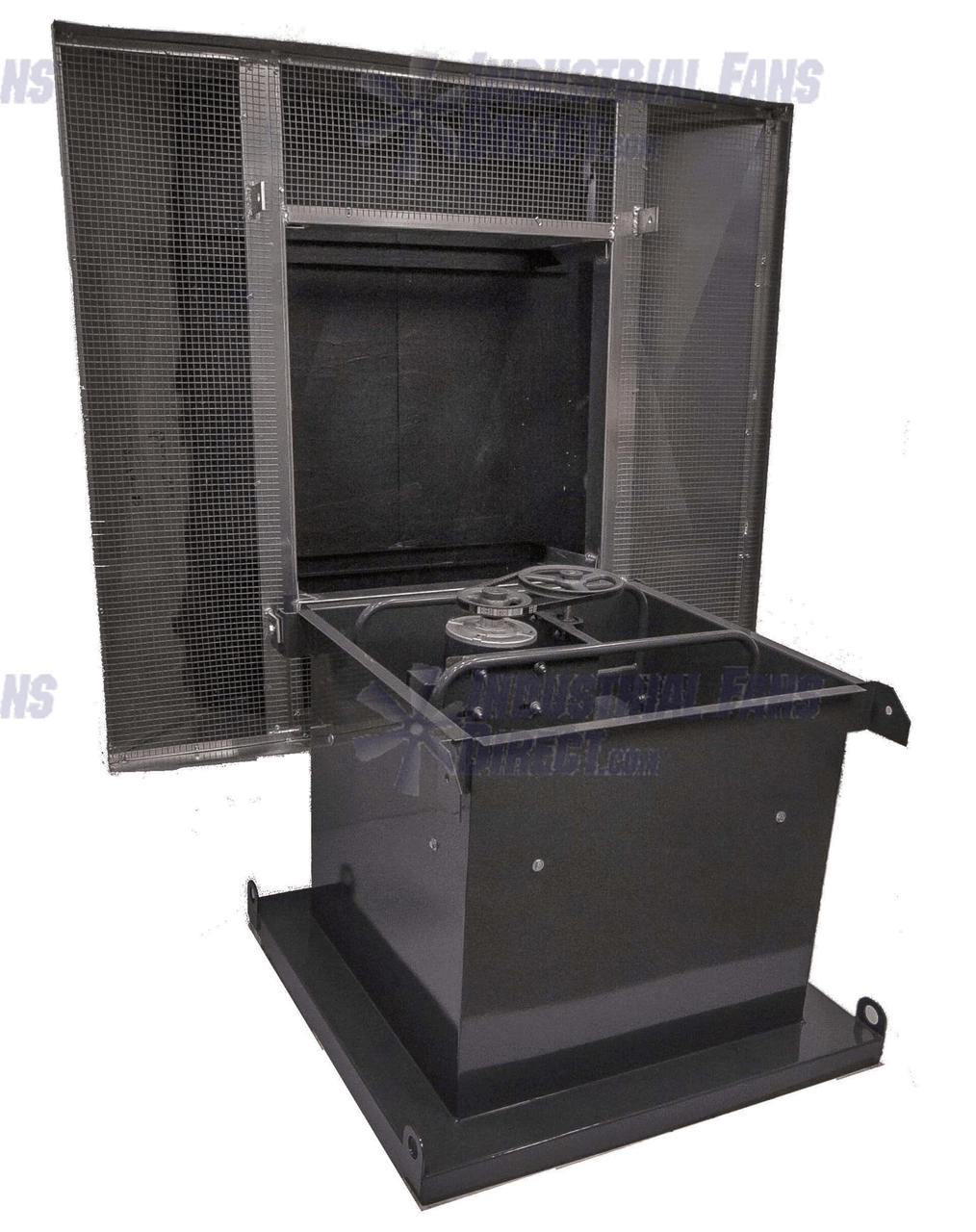

Fabricated aluminum weather hood with removable birdscreen. Easily opened and fully supported in place for full access to fan inside.

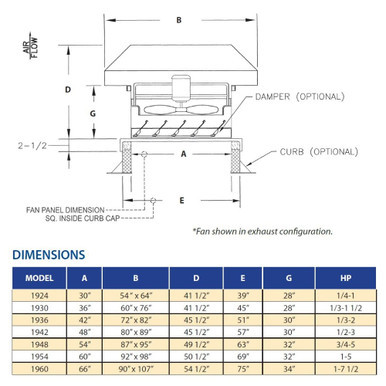

CURB DIMENSIONS
O.D. = 37-1/2"sq.
I.D. = 34-1/2" sq.
MIN. ROOF HOLE SIZE = 34"sq.

ROOF CURB NOTE
1. Standard Curb Base for roof Ventilator: Insulated, 8" High with Wood Nailer
2. NOT for Installation on Corrugated roofing or Standing Seam Roofs
