AirFlo Explosion Proof Hooded Roof Exhauster 30 inch 11867 CFM Belt Drive N1930-F-1-E

Specs Details Downloads

Specs for AirFlo Explosion Proof Hooded Roof Exhauster 30 inch 11867 CFM Belt Drive N1930-F-1-E

Amp: 136 / 19.2 Blade Diameter: 30.0" Blade Material: Cast Aluminum CFM: 11867 Drive Type: Belt Hertz: 60 Horsepower: 1 1/2 Made in the USA: No Motor Type: Explosion Proof Phase: 1 Phase RPM: 1725 Speed(s): 1 Speed Voltage: 115 / 230 AC Warehouse: Ohio Warranty: 1 Year

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 2, Group F & G

FEATURES
Heavy gauge continuously welded curb cap provides watertight construction
Non-sparking cast aluminum propellers for hazardous locations
Fabricated aluminum weather hood with removable birdscreen. Easily opened and fully supported in place for full access to fan inside.

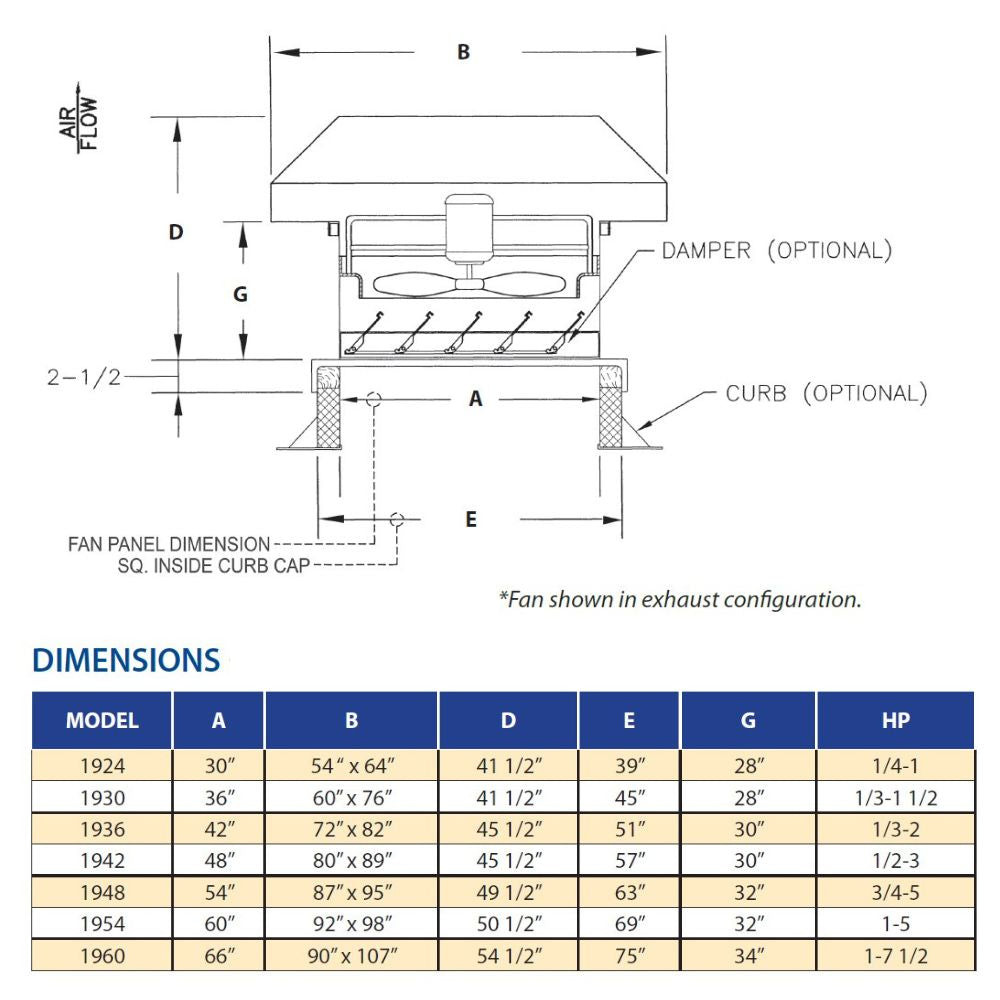

CURB DIMENSIONS
O.D. = 43-1/2"sq.
I.D. = 40-1/2"sq.
MIN. ROOF HOLE SIZE = 40"sq.

ROOF CURB NOTE
1. Standard Curb Base for roof Ventilator: Insulated, 8" High with Wood Nailer
2. NOT for Installation on Corrugated roofing or Standing Seam Roofs
