AirFlo-N600 Panel Mount Exhaust Fan 24 inch 6200 CFM Belt Drive N624-C-1-T
National Fan Co.
Item #: N624-C-1-T
Blade Diameter
24.0"
CFM
6200
Phase
1 Phase
Specs for AirFlo-N600 Panel Mount Exhaust Fan 24 inch 6200 CFM Belt Drive N624-C-1-T
Amp: 7.82 / 3.91
Blade Diameter: 24.0"
CFM: 6200

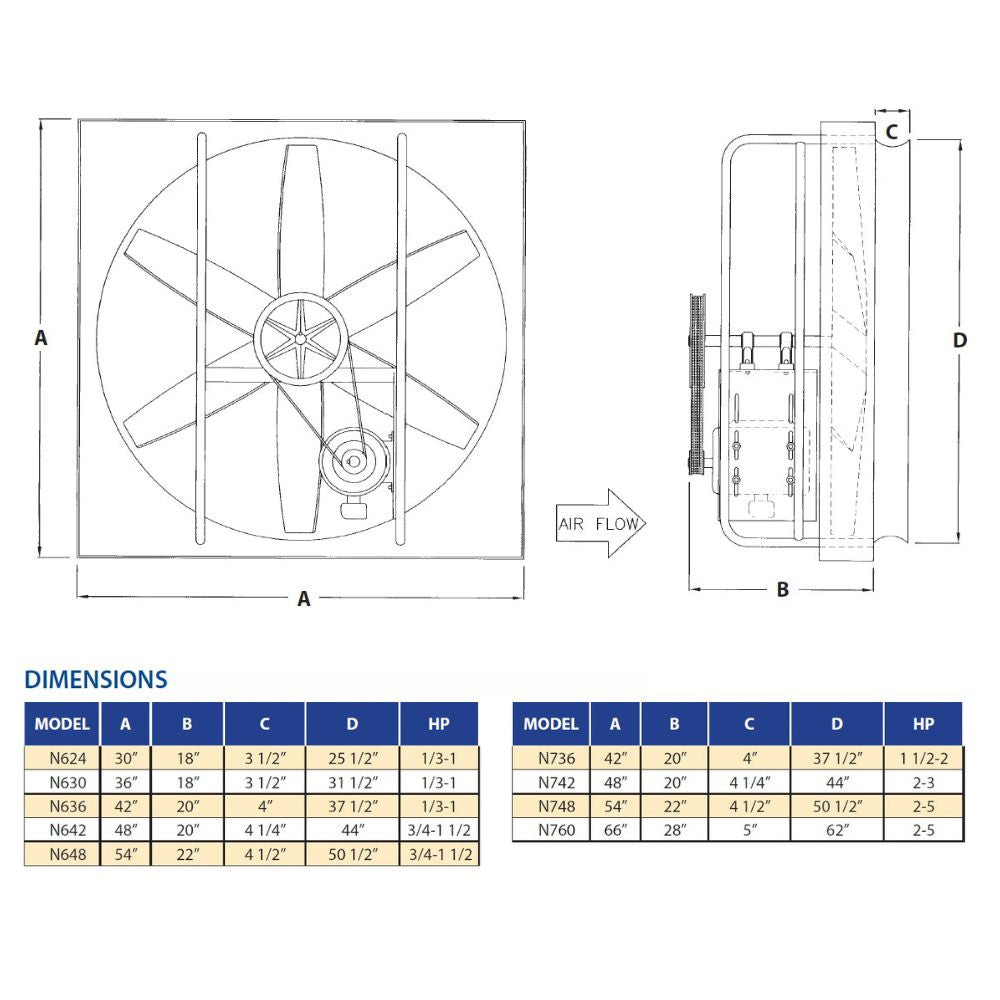

Dimensions: 30" x 30" x 21.5
Drive Type: Belt
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/2
Motor Type: TEFC
Phase: 1 Phase
RPM: 925
Speed(s): 1 Speed
Warehouse: Ohio
Warranty: 1 Year
Economical fans for light duty general exhaust requirements. Well suited for factory or warehouse ventilation.
FEATURES
Heavy duty 4-blade fabricated steel propellers standard
Sealed pillow block ball bearings
Fans shipped fully assembled and factory tested; ready for field installation
Motors are high quality industrial grade available in single or three phase – totally enclosed fan cooled
Belt driven for quiet operation
