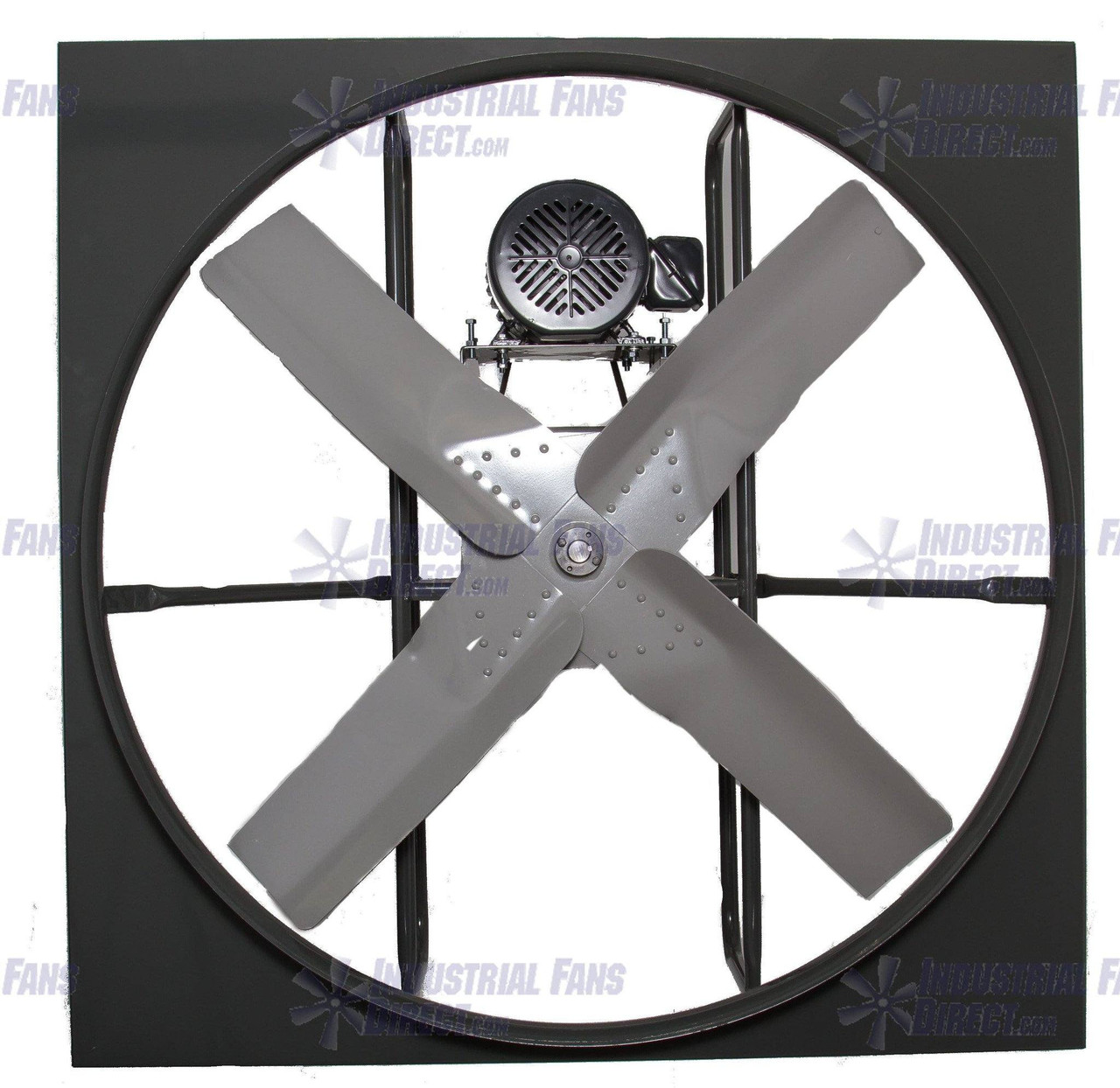

AirFlo-N800 Panel Mount Exhaust Fan 24 inch 7180 CFM Belt Drive 3 Phase N824-E-3-T
National Fan Co.
Item #: N824-E-3-T
Blade Diameter
24.0"
CFM
7180
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo-N800 Panel Mount Exhaust Fan 24 inch 7180 CFM Belt Drive 3 Phase N824-E-3-T
Amp: 3.12 / 1.56
Blade Diameter: 24.0"
Blade Material: Cast Aluminum
CFM: 7180
Dimensions: 36" x 29" x 32
Drive Type: Belt
Hertz: 60
Horsepower: 1
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
Designed to move large volumes of ambient air at low static pressures. Excellent for general ventilation in factories and warehouses for continuous duty applications.
FEATURES
Heavy duty shaft and re-lubricatable bearings provide many years of reliable service
Rugged 4-blade fabricated steel propellers
All welded motor and bearing support structure

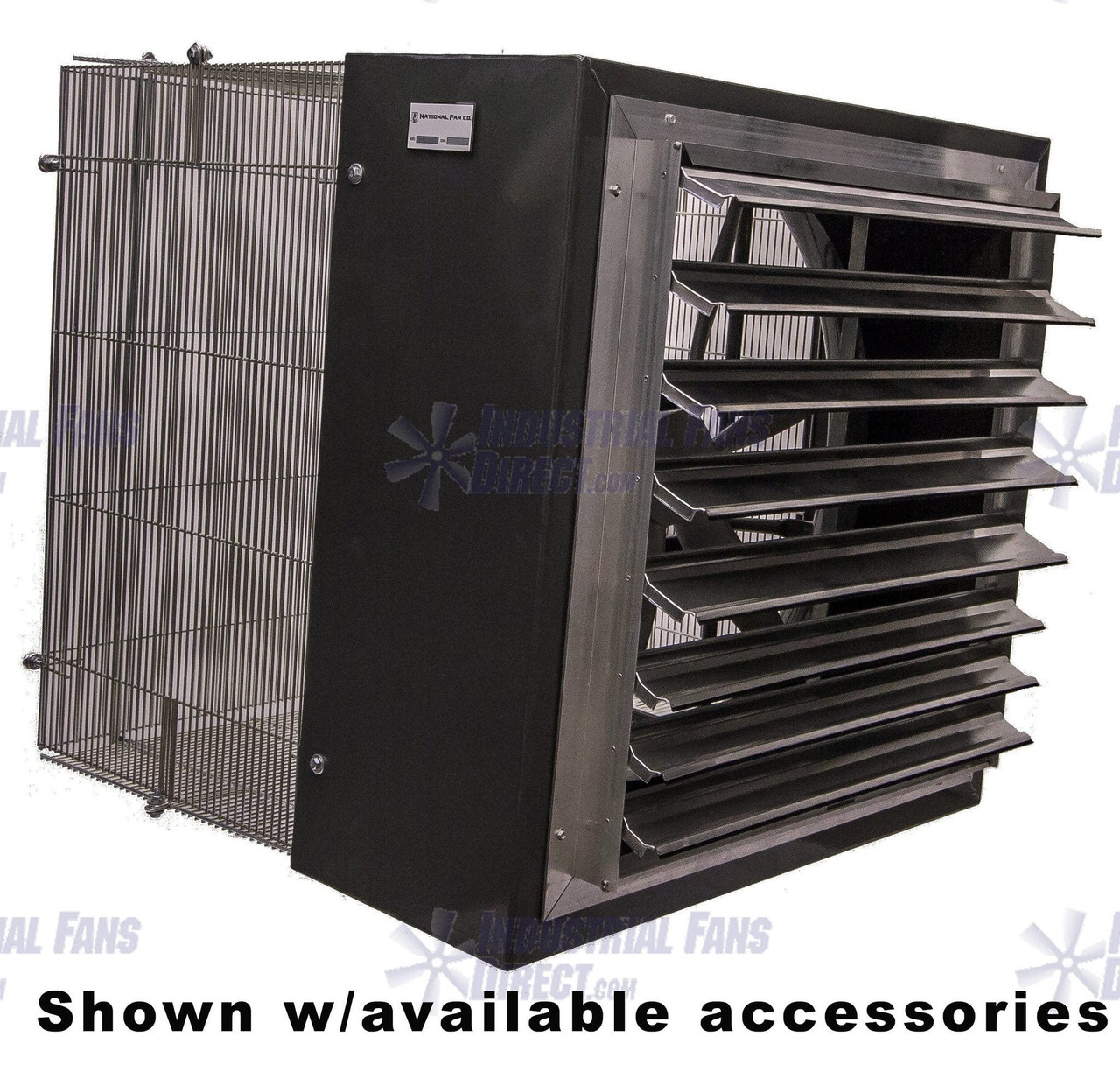

Available for exhaust or intake air applications
High quality industrial grade motors available in single or three phase, totally enclosed fan cooled
