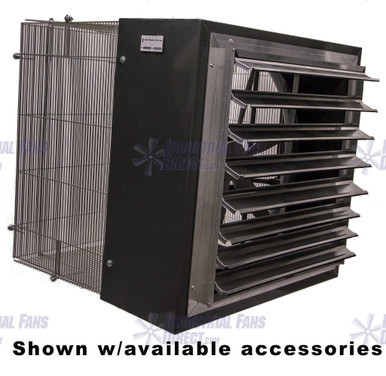

AirFlo-N800 Panel Mount Supply Fan 30 inch 10668 CFM Belt Drive 3 Phase N830-E-3-T-S
National Fan Co.
Item #: N830-E-3-T-S
Blade Diameter
30.0"
CFM
10668
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo-N800 Panel Mount Supply Fan 30 inch 10668 CFM Belt Drive 3 Phase N830-E-3-T-S
Amp: 16.4 / 3.12
Blade Diameter: 30.0"
Blade Material: Cast Aluminum
CFM: 10668
Dimensions: 42" x 31" x 40
Drive Type: Belt
Hertz: 60
Horsepower: 1
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
Designed to move large volumes of ambient air at low static pressures. Excellent for general ventilation in factories and warehouses for continuous duty applications.
FEATURES
Heavy duty shaft and re-lubricatable bearings provide many years of reliable service
Rugged 4-blade fabricated steel propellers
All welded motor and bearing support structure
Available for intake air applications
High quality industrial grade motors available in single or three phase, totally enclosed fan cooled
The following file(s) are provided by the manufacturer.
