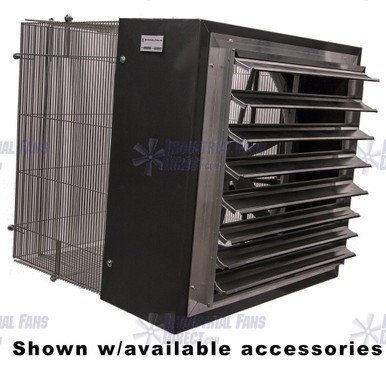

AirFlo-N800 Panel Mount Supply Fan 36 inch 13174 CFM Belt Drive 3 Phase N836-E-3-T-S
National Fan Co.
Item #: N836-E-3-T-S
Blade Diameter
36.0"
CFM
13174
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo-N800 Panel Mount Supply Fan 36 inch 13174 CFM Belt Drive 3 Phase N836-E-3-T-S
Amp: 16.4 / 3.12
Blade Diameter: 36.0"
Blade Material: Cast Aluminum
CFM: 13174

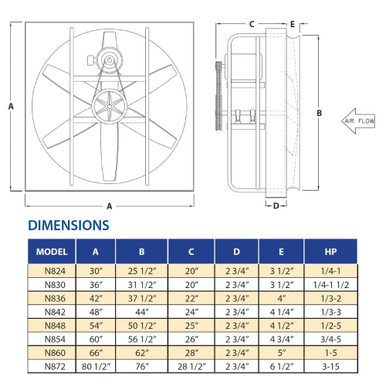

Dimensions: 48" x 33" x 46
Drive Type: Belt
Hertz: 60
Horsepower: 1
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
Designed to move large volumes of ambient air at low static pressures. Excellent for general ventilation in factories and warehouses for continuous duty applications.
FEATURES
Heavy duty shaft and re-lubricatable bearings provide many years of reliable service
Rugged 4-blade fabricated steel propellers
All welded motor and bearing support structure
Available for intake air applications
High quality industrial grade motors available in single or three phase, totally enclosed fan cooled
