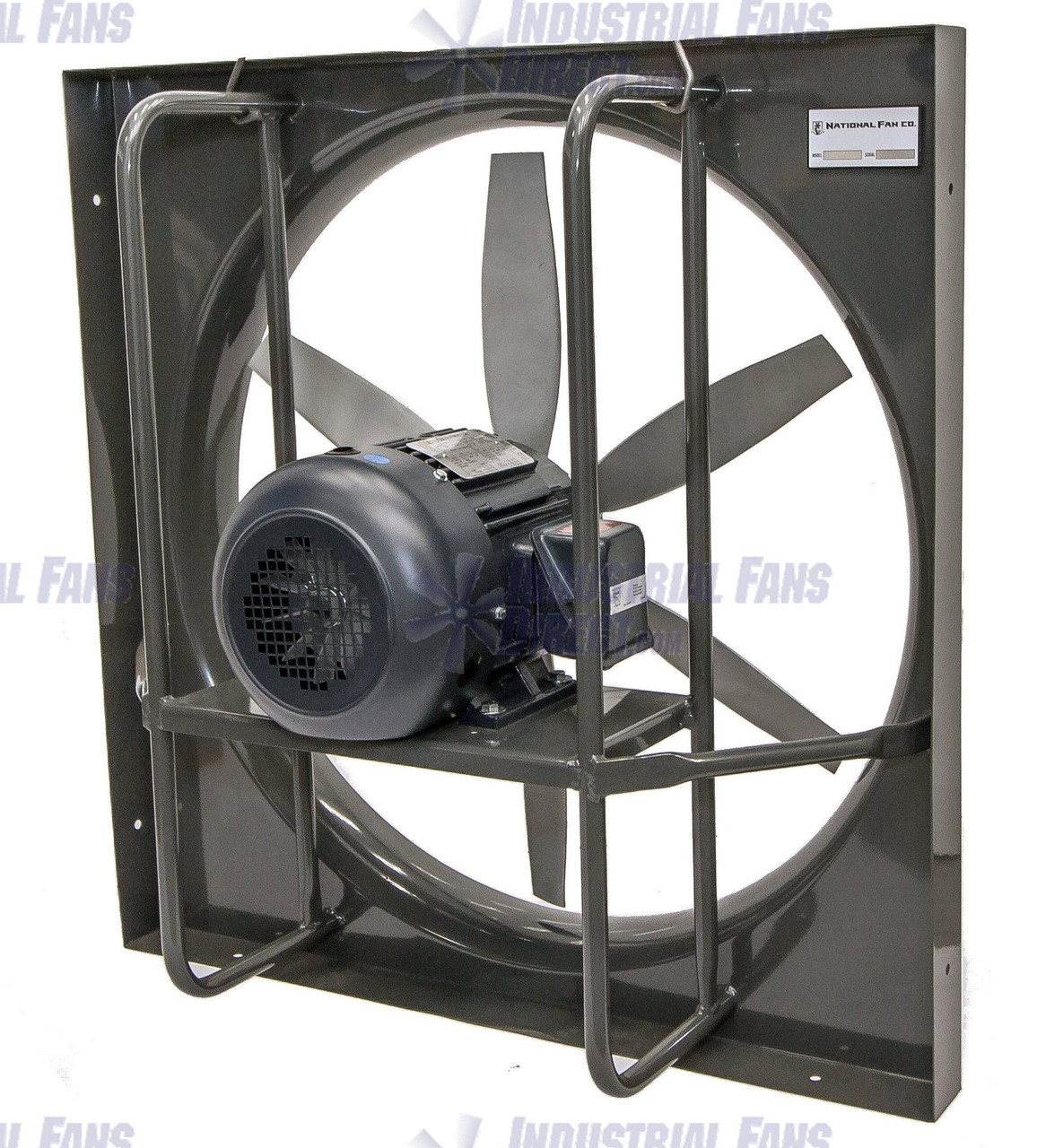

AirFlo Panel Explosion Proof Exhaust Fan 12 inch 1180 CFM 3 Phase N912-A-3-E

Specs Details Downloads

Specs for AirFlo Panel Explosion Proof Exhaust Fan 12 inch 1180 CFM 3 Phase N912-A-3-E

Blade Diameter: 12.0" Blade Material: Cast Aluminum CFM: 1180 Drive Type: Direct Fan Type: Explosion Proof Exhaust Fan Hertz: 60 Horsepower: 1/4 Phase: 3 Phase RPM: 1725 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Ohio Warranty: 1 Year

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

The 900 Series, Industrial Exhaust Fans are excellent for use in higher static pressure applications in factories, warehouses and mills for fume, smoke or dust removal. Provides dependable performance with little maintenance.

MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 2, Group F & G

FEATURES
Cast aluminum spark resistant propellers standard
Suitable for use in hazardous environments
More CFM per dollar spent than belt driven fan
Low maintenance
Lighter weight than belt driven units - facilitates installation
Heavy duty spun venture panel with rugged all welded motor support structure
