AirFlo-900 Panel Mount Supply Fan 16 inch 2800 CFM Direct Drive 3 Phase N916-A-3-T-S
National Fan Co.
Item #: N916-A-3-T-S
Blade Diameter
16.0"
CFM
2800
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo-900 Panel Mount Supply Fan 16 inch 2800 CFM Direct Drive 3 Phase N916-A-3-T-S
Amp: 1.34 / 0.67
Blade Diameter: 16.0"
Blade Material: Cast Aluminum
CFM: 2800

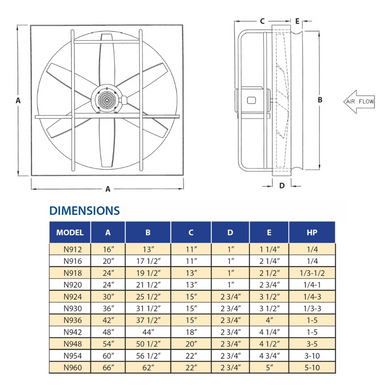

Dimensions: 20" x 20" x 13.25
Drive Type: Direct
Hertz: 60
Horsepower: 1/4
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
The 900 Series, Industrial Supply Fans are excellent for use in higher static pressure applications in factories, warehouses and mills for fume, smoke or dust removal. Provides dependable performance with little maintenance.
FEATURES
Cast aluminum spark resistant propellers standard
More CFM per dollar spent than belt driven fan
Low maintenance
Lighter weight than belt driven units - facilitates installation
Heavy duty spun venture panel with rugged all welded motor support structure
The following file(s) are provided by the manufacturer.
