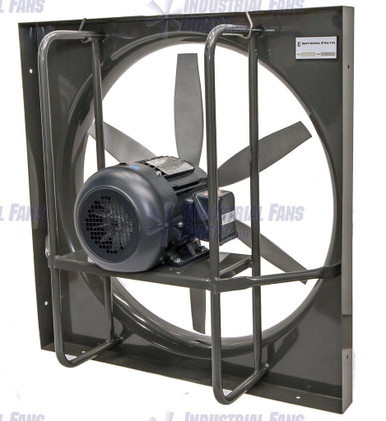

AirFlo-900 Panel Mount Exhaust Fan 36 inch 23000 CFM Direct Drive 3 Phase N936-I-3-T
National Fan Co.
Item #: N936-I-3-T
Blade Diameter
36.0"
CFM
23000
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo-900 Panel Mount Exhaust Fan 36 inch 23000 CFM Direct Drive 3 Phase N936-I-3-T
Amp: 13.3 / 6.65
Blade Diameter: 36.0"
Blade Material: Cast Aluminum
CFM: 23000
Dimensions: 48" x 28" x 46
Drive Type: Direct
Hertz: 60
Horsepower: 5
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
The 900 series are excellent for use in higher static pressure applications in factories, warehouses and mills for fume, smoke or dust removal.
FEATURES
Cast aluminum spark resistant propellers standard
More CFM per dollar spent than belt driven fan
Low maintenance
Lighter weight than belt driven units - facilitates installation
Heavy duty spun venture panel with rugged all welded motor support structure
