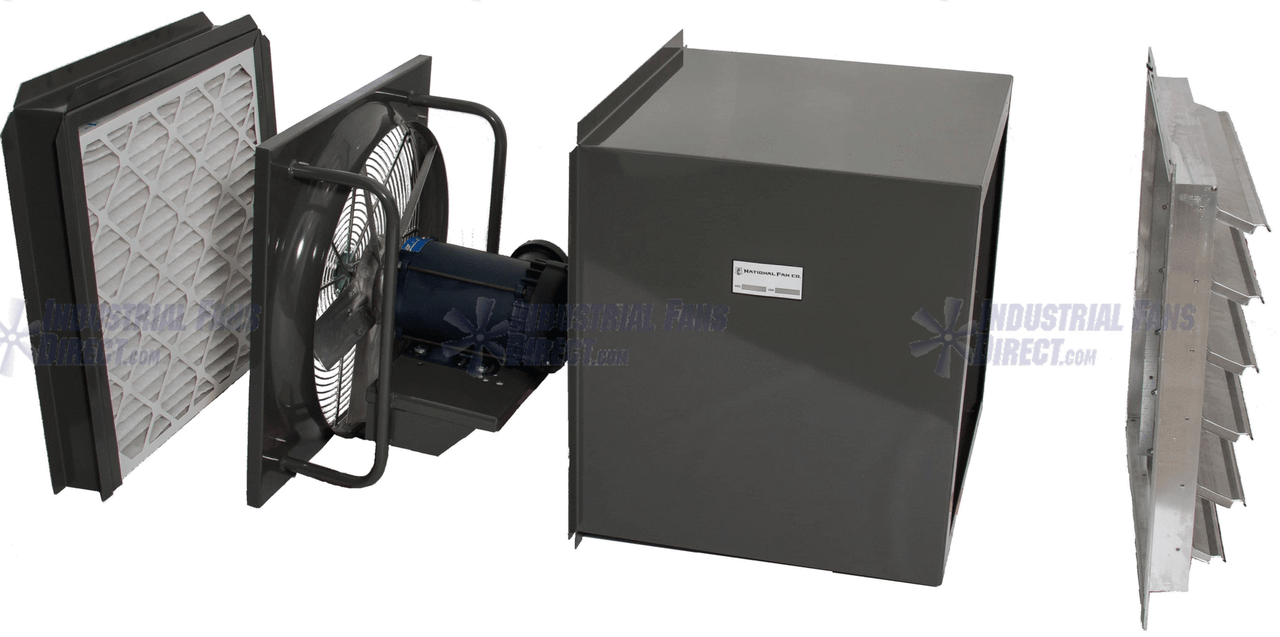

AirFlo Explosion Proof Filtered Exhaust Fan 12 inch 520 CFM Direct Drive 3 Phase NCFE12-A-3-E

Specs Details Downloads

Specs for AirFlo Explosion Proof Filtered Exhaust Fan 12 inch 520 CFM Direct Drive 3 Phase NCFE12-A-3-E

Amp: 1.34 / 0.67 Blade Diameter: 12.0" Blade Material: Cast Aluminum CFM: 520 Dimensions: 16.25" x 18.75" x 24 Drive Type: Direct Hertz: 60 Horsepower: 1/4 Made in the USA: Yes Motor Type: Explosion Proof Phase: 3 Phase RPM: 1725 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Ohio Warranty: 1 Year

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

Excellent for use where filtered exhaust air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets.This fans is also an economical choice for small unducted paint spray booths.

MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 2, Group F & G

FEATURES
Rugged spark-resistant cast aluminum propellers are standard
Standard OSHA style propeller guard
Removable filter box section
Disposable 2" filters are high capacity, pleated type that meet MERV 8 Rating
