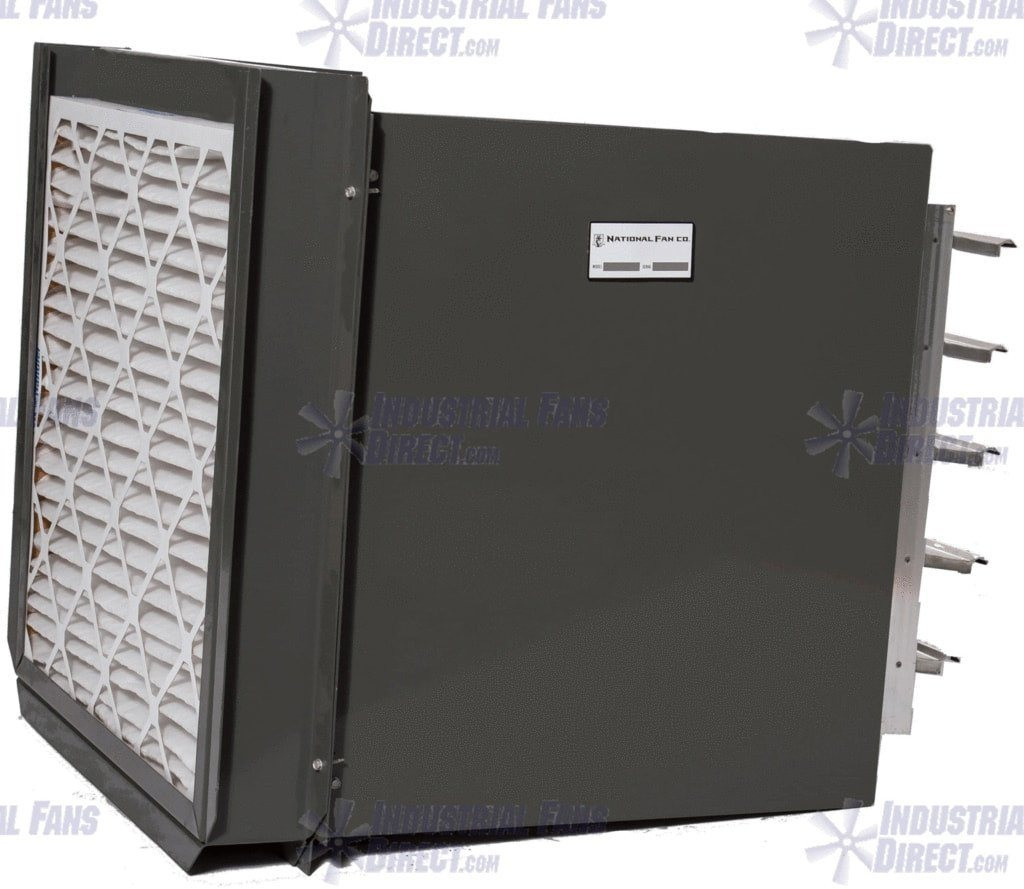

AirFlo Filtered Supply Fan 12 inch 520 CFM Direct Drive 3 Phase NCFI12-A-3-T
National Fan Co.
Item #: NCFI12-A-3-T
Blade Diameter
12.0"
CFM
520
Phase
3 Phase
Voltage
230 / 460 AC
Specs for AirFlo Filtered Supply Fan 12 inch 520 CFM Direct Drive 3 Phase NCFI12-A-3-T
Blade Diameter: 12.0"
Blade Material: Cast Aluminum
CFM: 520
Dimensions: 16.25" x 18.75" x 24
Drive Type: Direct
Hertz: 60
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Ohio
Warranty: 1 Year
Excellent for use where filtered supply air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets. Economical choice for small unducted paint spray booths.
FEATURES
Rugged spark-resistant cast aluminum propellers are standard
Standard OSHA style propeller guard

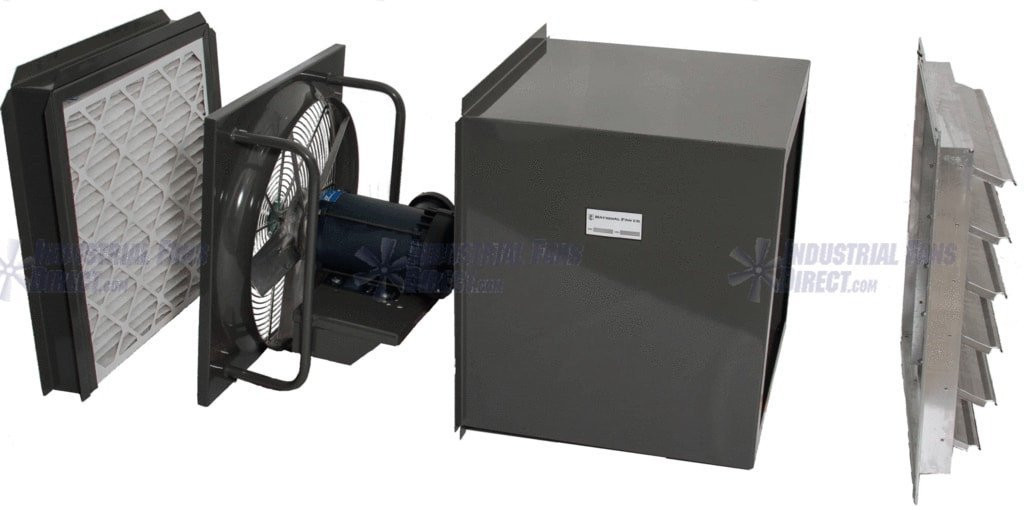

Removable filter box section
Disposable 2" filters are high capacity, pleated type that meet MERV 8 Rating
Temperature rating = 104
