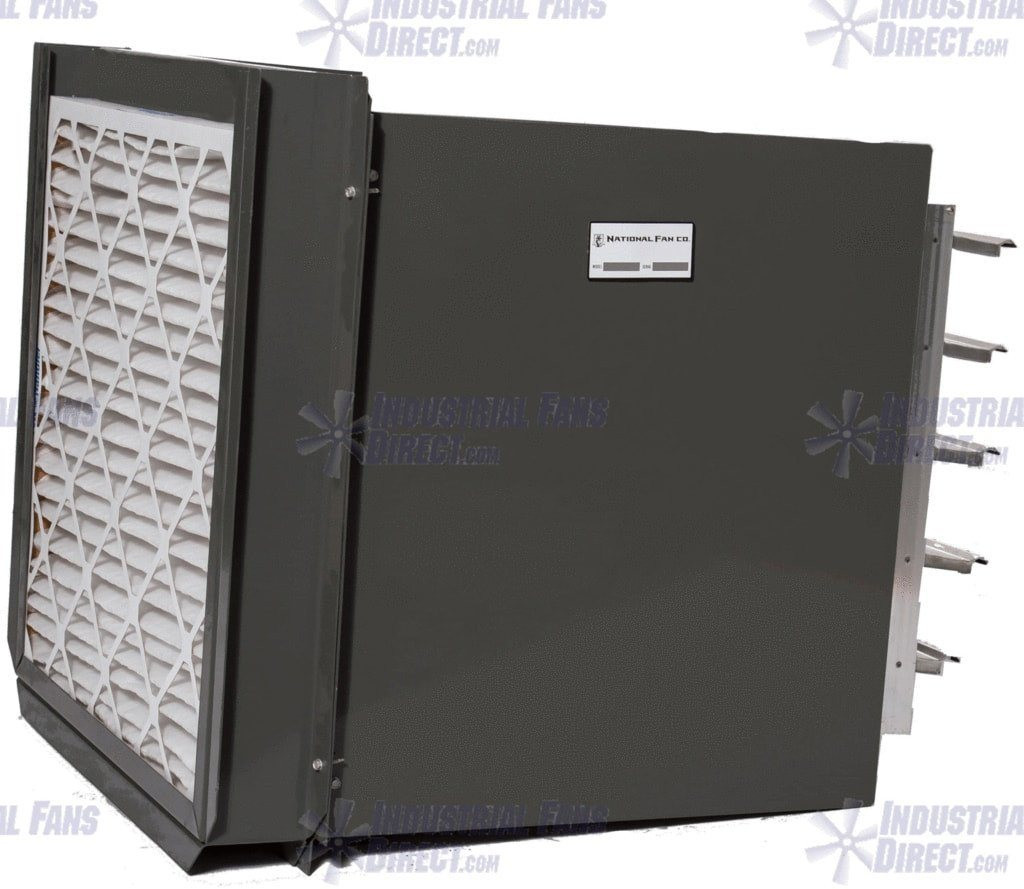

AirFlo Filtered Supply Fan 18 inch 3150 CFM Direct Drive NCFI18-C-1-T
National Fan Co.
Item #: NCFI18-C-1-T
Blade Diameter
18.0"
CFM
3150
Phase
1 Phase
Voltage
115 / 230 AC
Specs for AirFlo Filtered Supply Fan 18 inch 3150 CFM Direct Drive NCFI18-C-1-T
Blade Diameter: 18.0"
Blade Material: Cast Aluminum
CFM: 3150

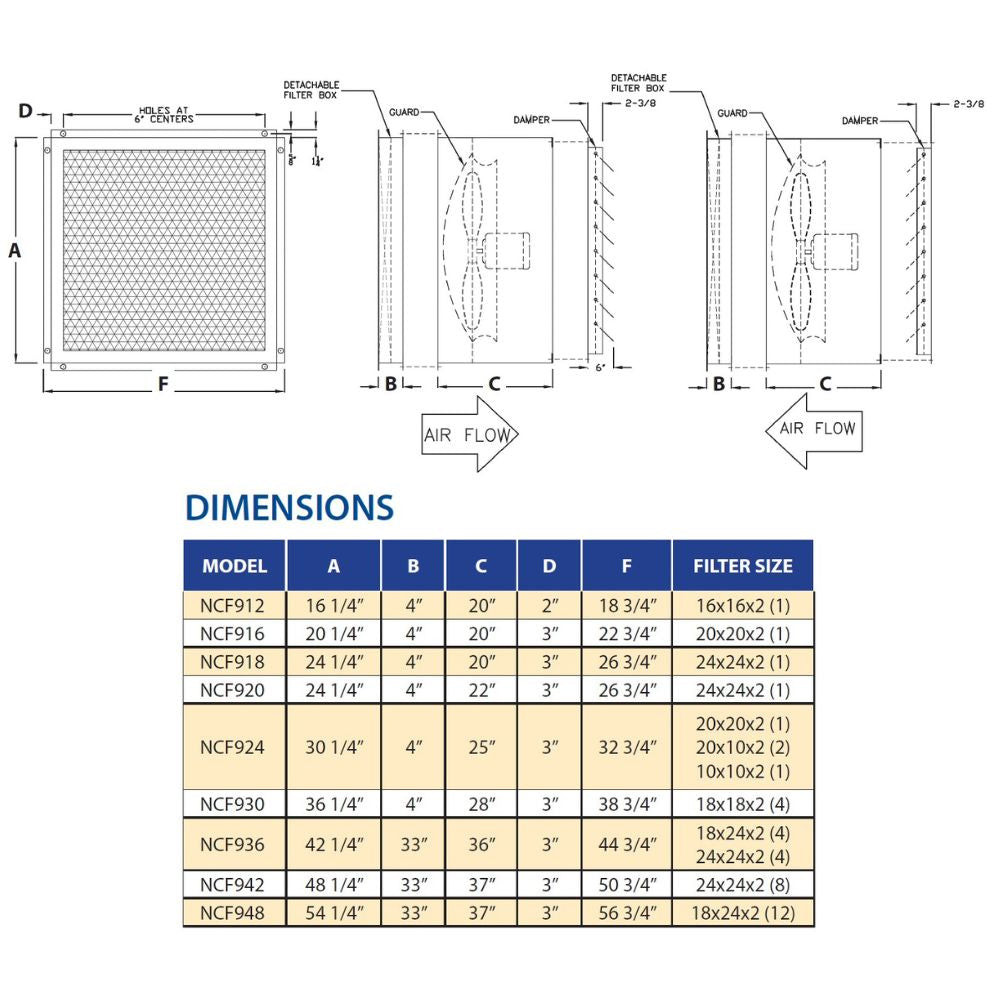

Dimensions: 24.25" x 26.75" x 24
Drive Type: Direct
Harmonized System Code: 841459.0
Hertz: 60
Horsepower: 1/2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Ohio
Warranty: 1 Year
Excellent for use where filtered supply air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets. Economical choice for small unducted paint spray booths.
FEATURES
Rugged spark-resistant cast aluminum propellers are standard
Standard OSHA style propeller guard

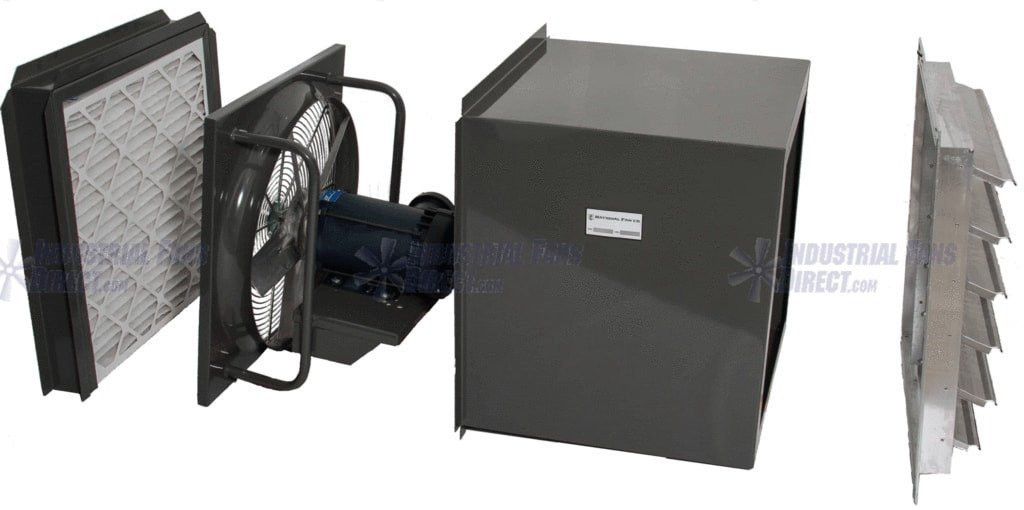

Removable filter box section
Disposable 2" filters are high capacity, pleated type that meet MERV 8 Rating
Temperature rating = 104
The following file(s) are provided by the manufacturer.
