AirFlo Filtered Supply Fan 30 inch 6300 CFM Direct Drive NCFI30-C-1-T
National Fan Co.
Item #: NCFI30-C-1-T
Blade Diameter
30.0"
CFM
6300
Phase
1 Phase
Voltage
115 / 230 AC
Specs for AirFlo Filtered Supply Fan 30 inch 6300 CFM Direct Drive NCFI30-C-1-T
Blade Diameter: 30.0"
Blade Material: Cast Aluminum
CFM: 6300

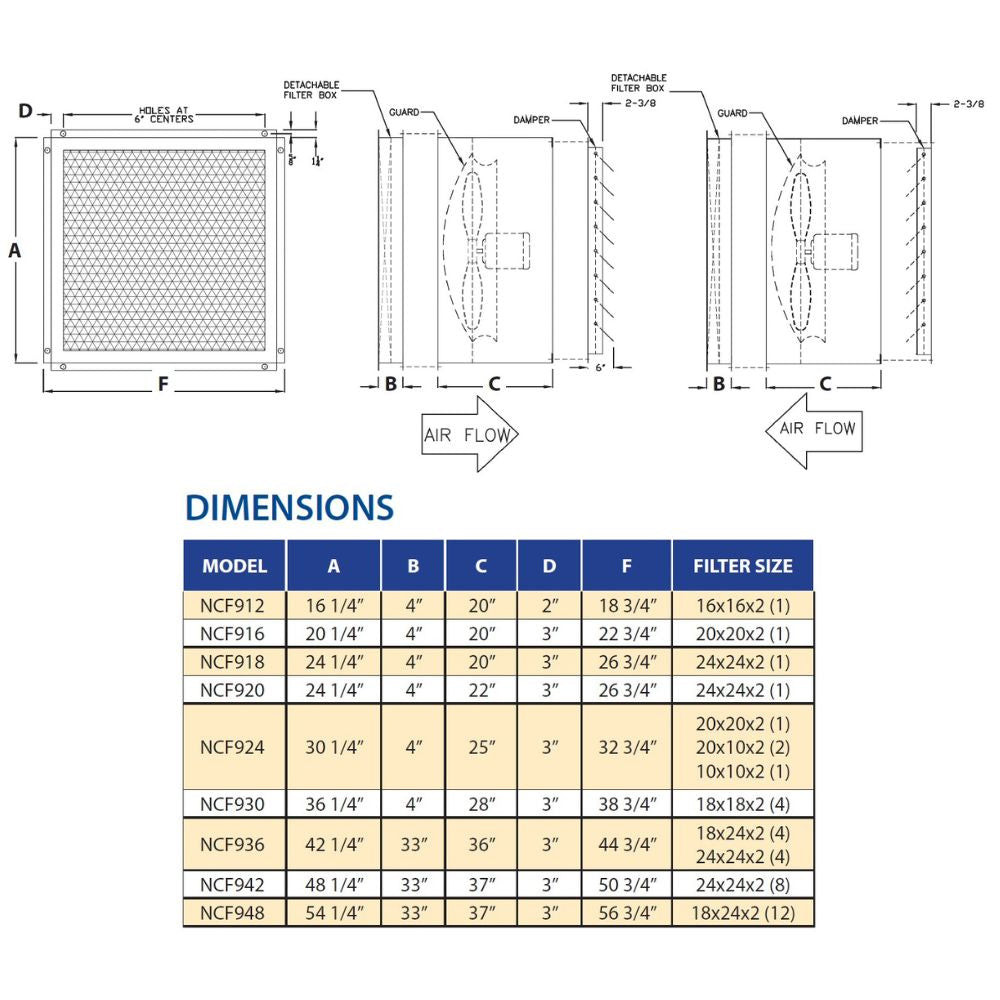

Dimensions: 36.25" x 38.75" x 32
Drive Type: Direct
Hertz: 60
Horsepower: 1/2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Multiple Warehouses
Warranty: 1 Year
Excellent for use where filtered supply air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets. Economical choice for small unducted paint spray booths.
FEATURES
Rugged spark-resistant cast aluminum propellers are standard
Standard OSHA style propeller guard
Removable filter box section
Disposable 2" filters are high capacity, pleated type that meet MERV 8 Rating
Temperature rating = 104
