Wall Mount Supply Fan w/ Motorized Shutters 12 inch 1450 CFM Direct Drive P12-1RS9M115
Canarm
Item #: P12-1RS9M115
Blade Diameter
12.0"
CFM
1450
Phase
1 Phase
Voltage
115 / 230 AC
Specs for Wall Mount Supply Fan w/ Motorized Shutters 12 inch 1450 CFM Direct Drive P12-1RS9M115
Amp: 5 / 2.5
Blade Diameter: 12.0"
CFM: 1450

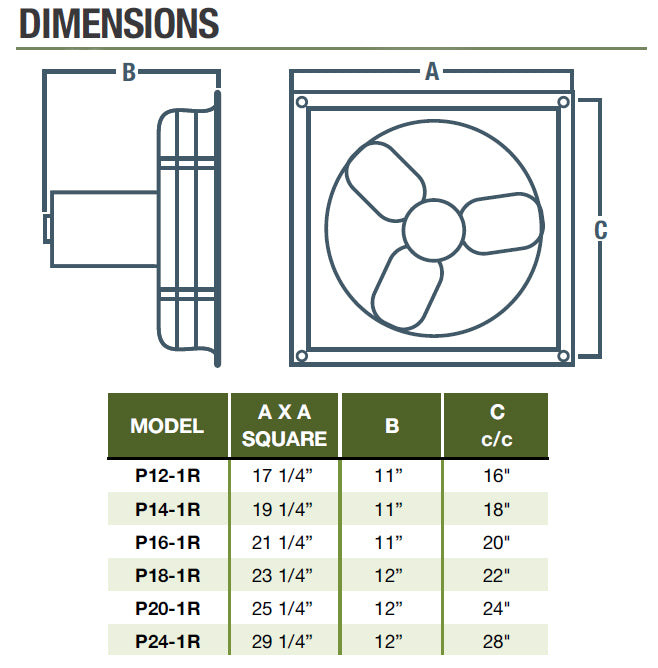

Dimensions: 17.25" x 17.25" x 11
Drive Type: Direct
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1700
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
FEATURES
Sturdily constructed direct drive, horizontal discharge fan.
Durable powder coat finish.
Standard heavy duty OSHA motor mount/guard.
Motors are totally enclosed, with overload protection.
Fully assembled
Shutter motor is 120 Volt ( specs are for fan motor only and not damper motor)
The following file(s) are provided by the manufacturer.
