Explosion Proof Panel Mount Exhaust Fan 12 inch 1640 CFM 3 Phase Direct Drive P12-4M
Canarm
Item #: P12-4M
Blade Diameter
12.0"
CFM
1670
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for Explosion Proof Panel Mount Exhaust Fan 12 inch 1640 CFM 3 Phase Direct Drive P12-4M
Amp: 1.4
Blade Diameter: 12.0"
CFM: 1670

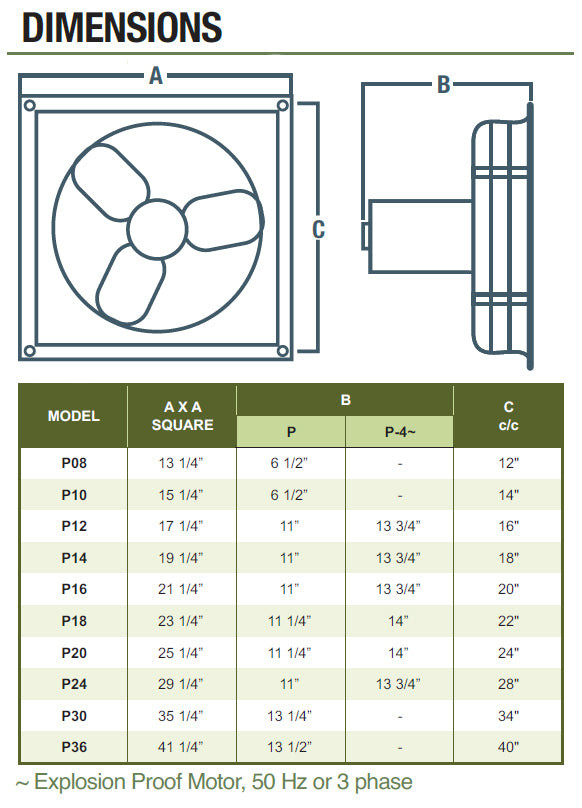

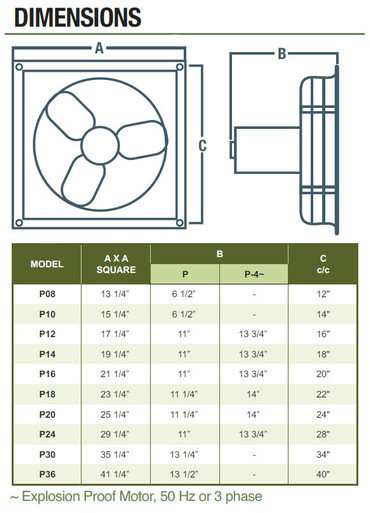

Dimensions: 17.25" x 17.25" x 13.75
Drive Type: Direct
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Class I - Group C & D
Class II - Group F & G
FEATURES
Sturdily constructed direct drive, horizontal discharge fan.
Durable powder coat finish.
Standard heavy duty OSHA motor mount/guard.
Motors are totally enclosed, with overload protection.
The following file(s) are provided by the manufacturer.
