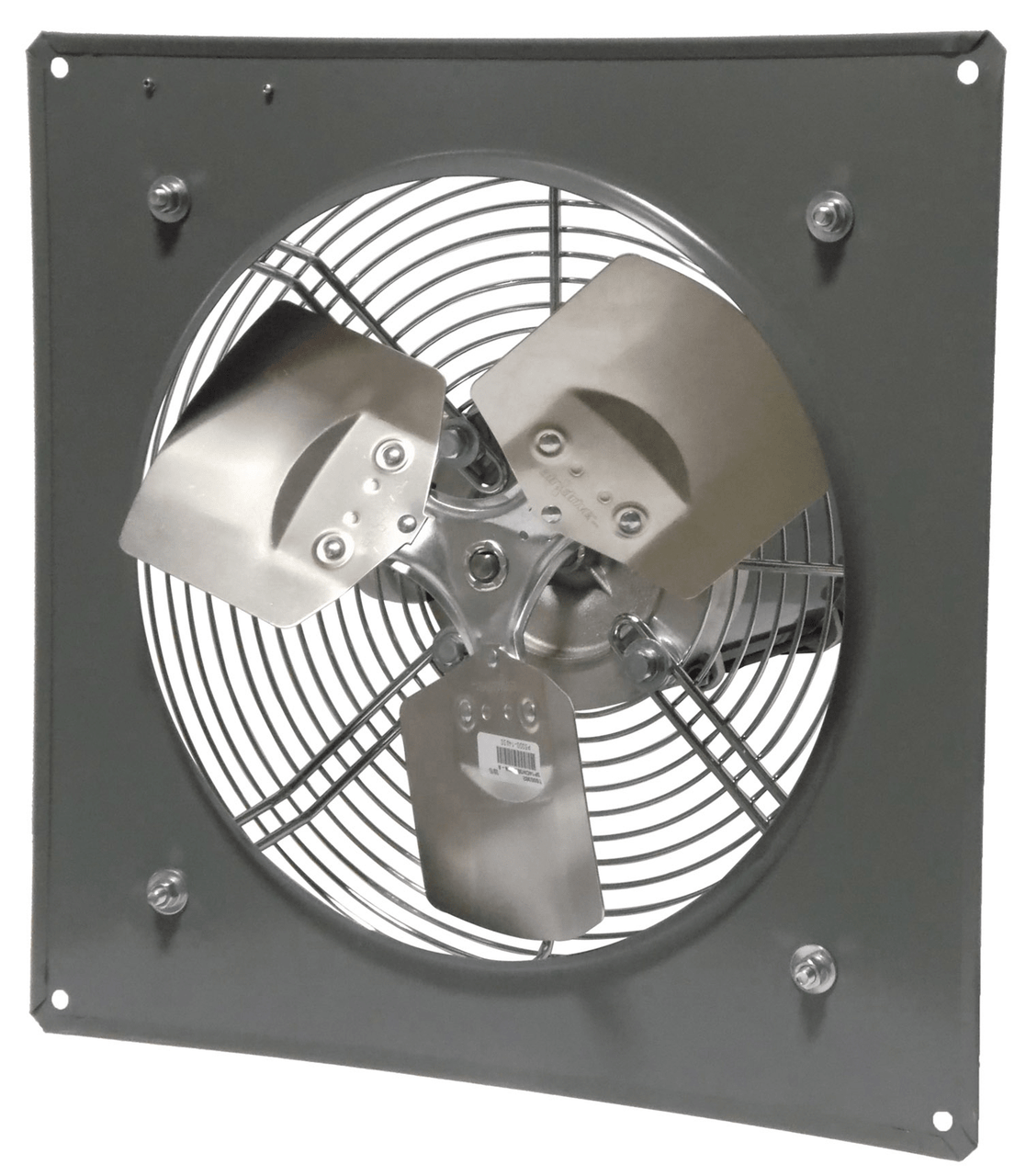

Wall Mount Panel Type Exhaust Fan 14 inch 2170 CFM 3 Phase Direct Drive P14-1M
Canarm
Item #: P14-1M
Blade Diameter
14.0"
CFM
2170
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for Wall Mount Panel Type Exhaust Fan 14 inch 2170 CFM 3 Phase Direct Drive P14-1M
Amp: 5 / 2.5
Blade Diameter: 14.0"
CFM: 2170
Dimensions: 19.25" x 19.25" x 11
Drive Type: Direct
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1700
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
FEATURES
Sturdily constructed direct drive, horizontal discharge fan.
Durable powder coated finish.
8” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan. 30” & 36” models have grey powder coated guards.
Totally enclosed air over motor with overload protection.
Ships fully assembled.
