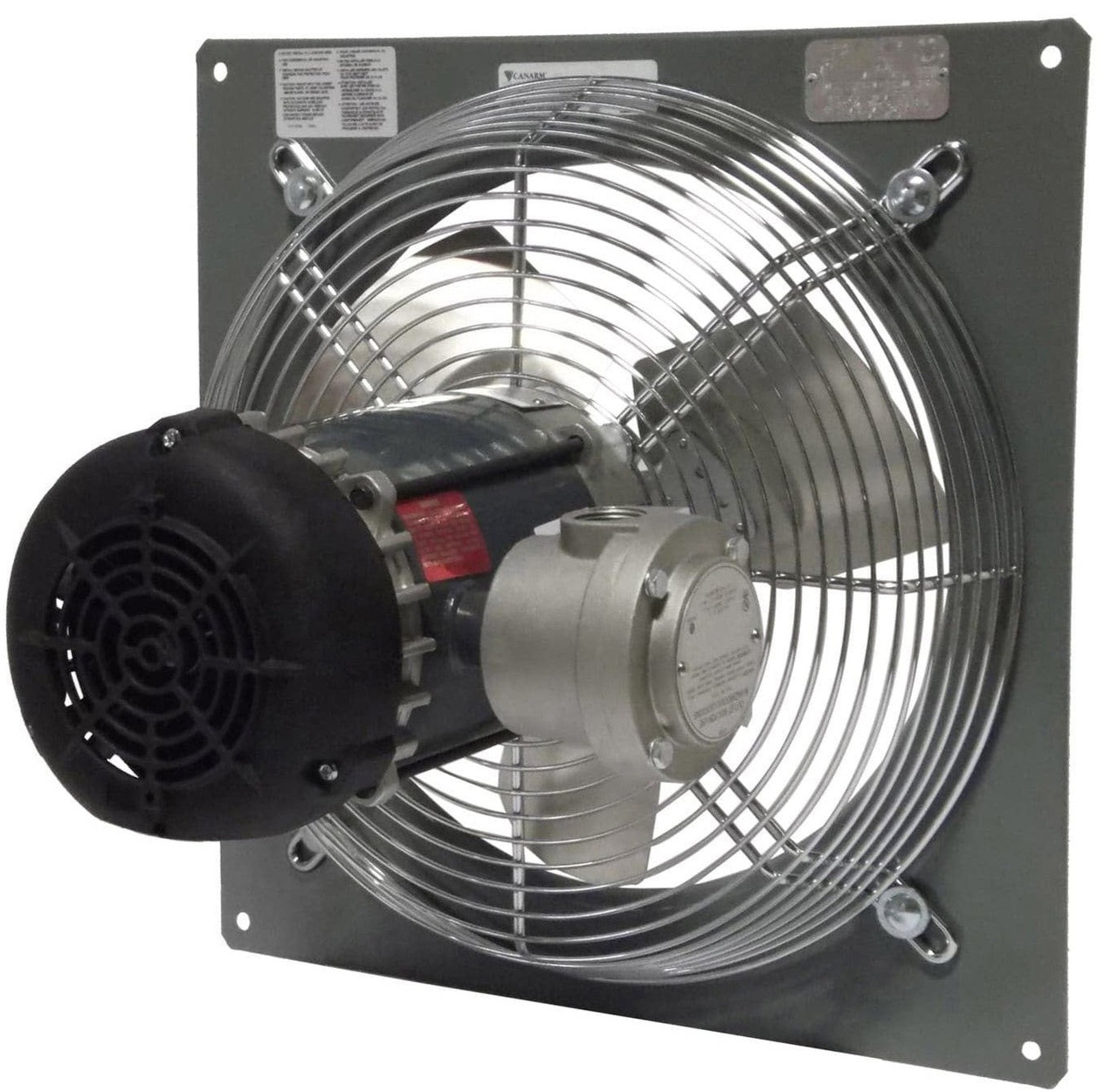

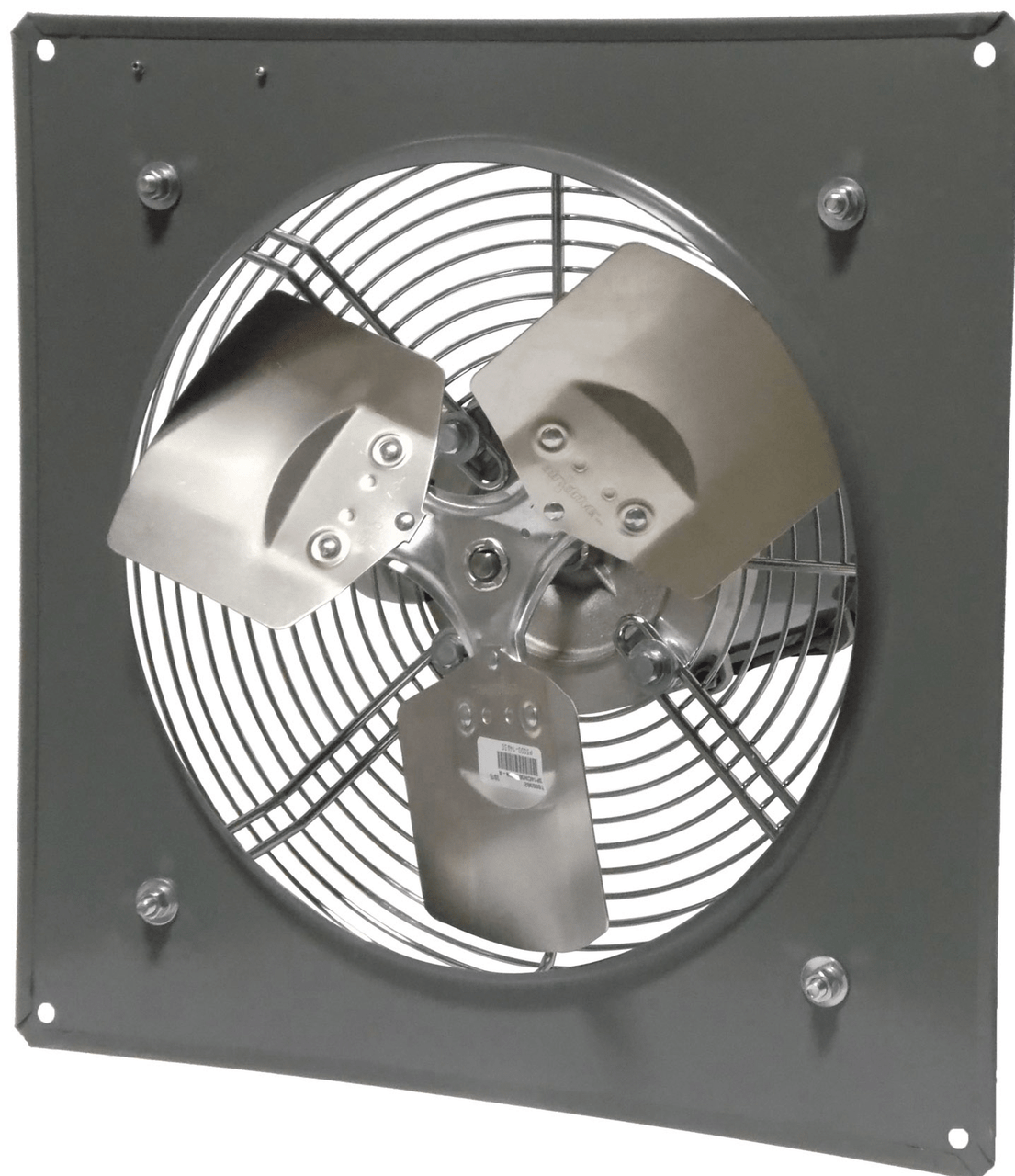

Explosion Proof Panel Mount Exhaust Fan 16 inch 2580 CFM Direct Drive P16-4
Canarm
Item #: P16-4
Blade Diameter
16.0"
CFM
2580
Phase
1 Phase
Voltage
115 / 208 / 230 AC
Specs for Explosion Proof Panel Mount Exhaust Fan 16 inch 2580 CFM Direct Drive P16-4
Amp: 6.6 / 3.1 / 3.3
Blade Diameter: 16.0"
CFM: 2580
Dimensions: 21.25" x 21.25" x 13.75
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: Explosion Proof
Phase: 1 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 115 / 208 / 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
MOTOR CLASSIFICATION
Class I - Group C & D
Class II - Group F & G
FEATURES
Sturdily constructed direct drive, horizontal discharge fan.
Durable powder coat finish.
Standard heavy duty OSHA motor mount/guard.
Motors are totally enclosed, with overload protection.
