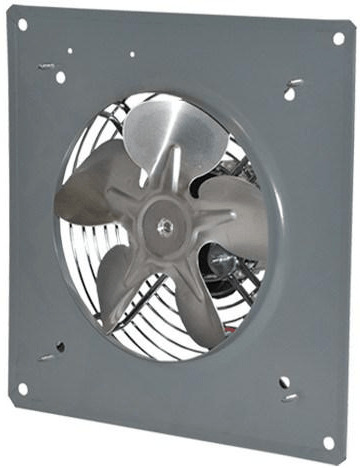

AirFlo-PF Panel Exhaust Fan 10 inch 703 CFM 2 Speed PF103
Canarm
Item #: PF103
Blade Diameter
10.0"
CFM
703
Phase
1 Phase
Voltage
115 AC
Specs for AirFlo-PF Panel Exhaust Fan 10 inch 703 CFM 2 Speed PF103
Amp: 1.7
Blade Diameter: 10.0"
Blade Material: Aluminum
CFM: 703
Decibels: 56 @ 5 ft
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 0
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
Speed(s): 2 Speed
Voltage: 115 AC
Warehouse: New York
Warranty: 1 Year
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Features:sturdily constructed direct drive, horizontal discharge fan.
durable powder coat finish.
standard heavy duty OSHA motor mount/guard.
motors are totally enclosed, with overload protection.
*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
*Sizes are approximates and may vary based on motor manufacturer
A = 15-1/4" Square
B = 6-1/2"
C = 14"
