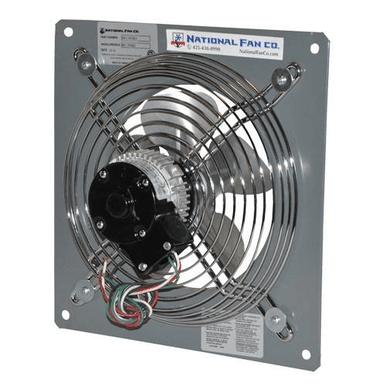

AirFlo-PF Panel Exhaust Fan 12 inch 1377 CFM Variable Speed PF121VHE
Canarm
Item #: PF121VHE
Blade Diameter
12.0"
CFM
1417
Phase
1 Phase
Voltage
115 AC
Specs for AirFlo-PF Panel Exhaust Fan 12 inch 1377 CFM Variable Speed PF121VHE
Amp: 1
Blade Diameter: 12.0"
Blade Material: Aluminum
CFM: 1417
Decibels: 60 @ 5 ft
Dimensions: 17.25" x 17.25" x 11
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60 / 50
Horsepower: 0
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
Speed(s): Variable Speed
Voltage: 115 AC
Warehouse: New York
Warranty: 1 Year
All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Features:sturdily constructed direct drive, horizontal discharge fan.
durable powder coat finish.
standard heavy duty OSHA motor mount/guard.
motors are totally enclosed, with overload protection.
*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly
*Sizes are approximates and may vary based on motor manufacturer
A = 17-1/4" Square
B = 11"
C = 16"
