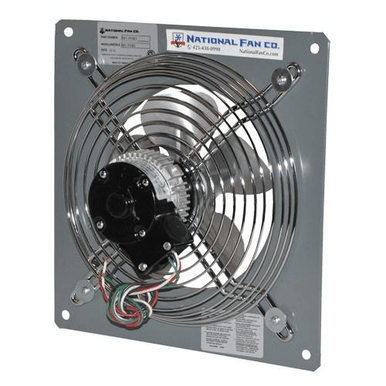

AirFlo-PF Panel Exhaust Fan 12 inch 1672 CFM 1 Speed PF122
Canarm
Item #: PF122
Blade Diameter
12.0"
CFM
1672
Phase
1 Phase
Specs for AirFlo-PF Panel Exhaust Fan 12 inch 1672 CFM 1 Speed PF122
Amp: 1.8
Blade Diameter: 12.0"
Blade Material: Aluminum
CFM: 1672
Decibels: 63 @ 5 ft
Dimensions: 17.25" x 17.25" x 11
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
Speed(s): 1 Speed
Warehouse: New York
Warranty: 1 Year
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Features:sturdily constructed direct drive, horizontal discharge fan.
durable powder coat finish.
standard heavy duty OSHA motor mount/guard.
motors are totally enclosed, with overload protection.
*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
*Sizes are approximates and may vary based on motor manufacturer
A = 17-1/4" Square
B = 11"
C = 16"
