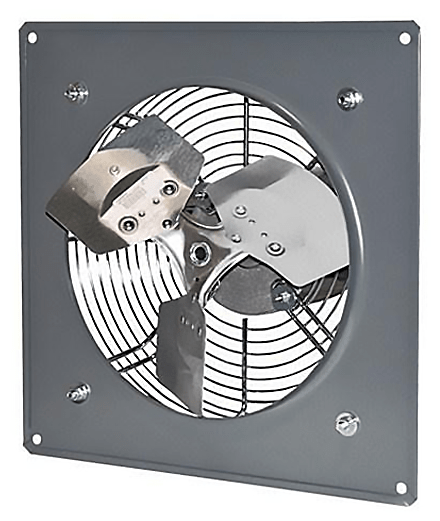

AirFlo-PF Panel Exhaust Fan 20 inch 3692 CFM Variable Speed PF201V
Canarm
Item #: PF201V
Blade Diameter
20.0"
CFM
3692
Phase
1 Phase
Voltage
115 / 230 AC
Specs for AirFlo-PF Panel Exhaust Fan 20 inch 3692 CFM Variable Speed PF201V
Amp: 3.8 / 1.9
Blade Diameter: 20.0"
Blade Material: Aluminum
CFM: 3692
Decibels: 77 @ 5 ft
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
Speed(s): Variable Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Features:sturdily constructed direct drive, horizontal discharge fan.
durable powder coat finish.
standard heavy duty OSHA motor mount/guard.
motors are totally enclosed, with overload protection.
*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
*Sizes are approximates and may vary based on motor manufacturer
A = 25-1/4"
B = 11-1/4"
C = 24"
