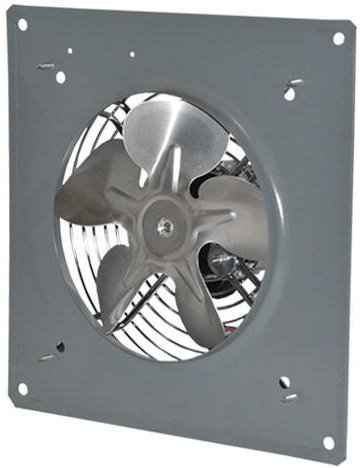

AirFlo-PF Panel Exhaust Fan 24 inch 5610 CFM Direct Drive Variable Speed PF241V

Specs Details

Specs for AirFlo-PF Panel Exhaust Fan 24 inch 5610 CFM Direct Drive Variable Speed PF241V

Amp: 4.4 / 2.2 Blade Diameter: 24.0" Blade Material: Aluminum CFM: 5610 Decibels: 72 @ 5 ft Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1/3 Made in the USA: No Motor Type: TEFC Phase: 1 Phase Speed(s): Variable Speed Voltage: 115 / 230 AC Warehouse: New York Warranty: 1 Year

All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.

Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.

Features:
sturdily constructed direct drive, horizontal discharge fan.
durable powder coat finish.
standard heavy duty OSHA motor mount/guard.
motors are totally enclosed, with overload protection.

*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.

DIMENSIONS:
*Sizes are approximates and may vary based on motor manufacturer
A = 29 1/4 in.
B = 11 in.
C = 28 in.
