RB Upblast Roof Exhaust Fan 24 inch 7870 CFM Belt Drive RB24T10150
Canarm
Item #: RB24T10150
Blade Diameter
24.0"
CFM
7870
Phase
1 Phase
Voltage
115 / 230 AC
Specs for RB Upblast Roof Exhaust Fan 24 inch 7870 CFM Belt Drive RB24T10150
Amp: 4.8 / 4.8
Blade Diameter: 24.0"
Blade Material: Galvanized Steel
CFM: 7870

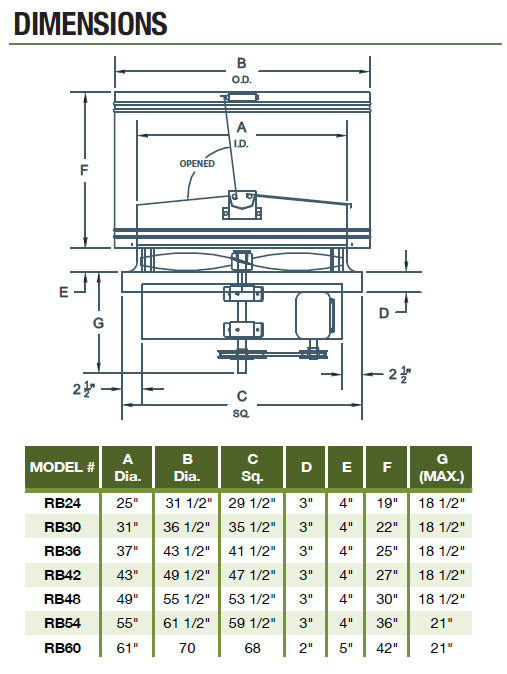

Dimensions: 39.5" x 29.5" x 29.5
Drive Type: Belt
Hertz: 60 / 50
Horsepower: 1 1/2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1370
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
The following file(s) are provided by the manufacturer.
