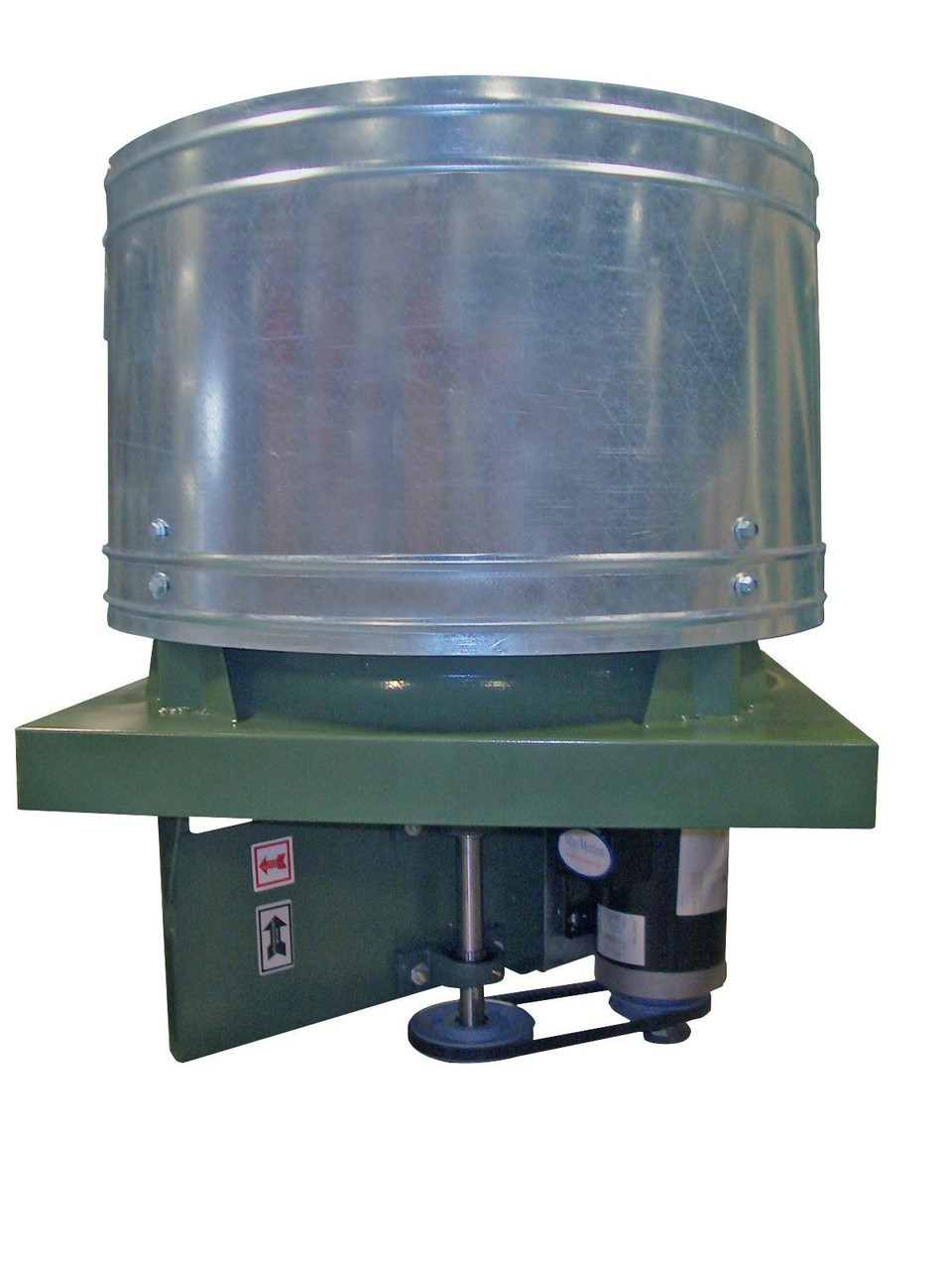

RB Upblast Roof Exhaust Fan 30 inch 8903 CFM Belt Drive 3 Phase RB30T30075M
Canarm
Item #: RB30T30075M
Blade Diameter
30.0"
CFM
8903
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RB Upblast Roof Exhaust Fan 30 inch 8903 CFM Belt Drive 3 Phase RB30T30075M
Amp: 2.8 / 1.4
Blade Diameter: 30.0"
Blade Material: Galvanized Steel
CFM: 8903
Dimensions: 44.5" x 35.5" x 35.5
Drive Type: Belt
Hertz: 60
Horsepower: 3/4
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 875
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
