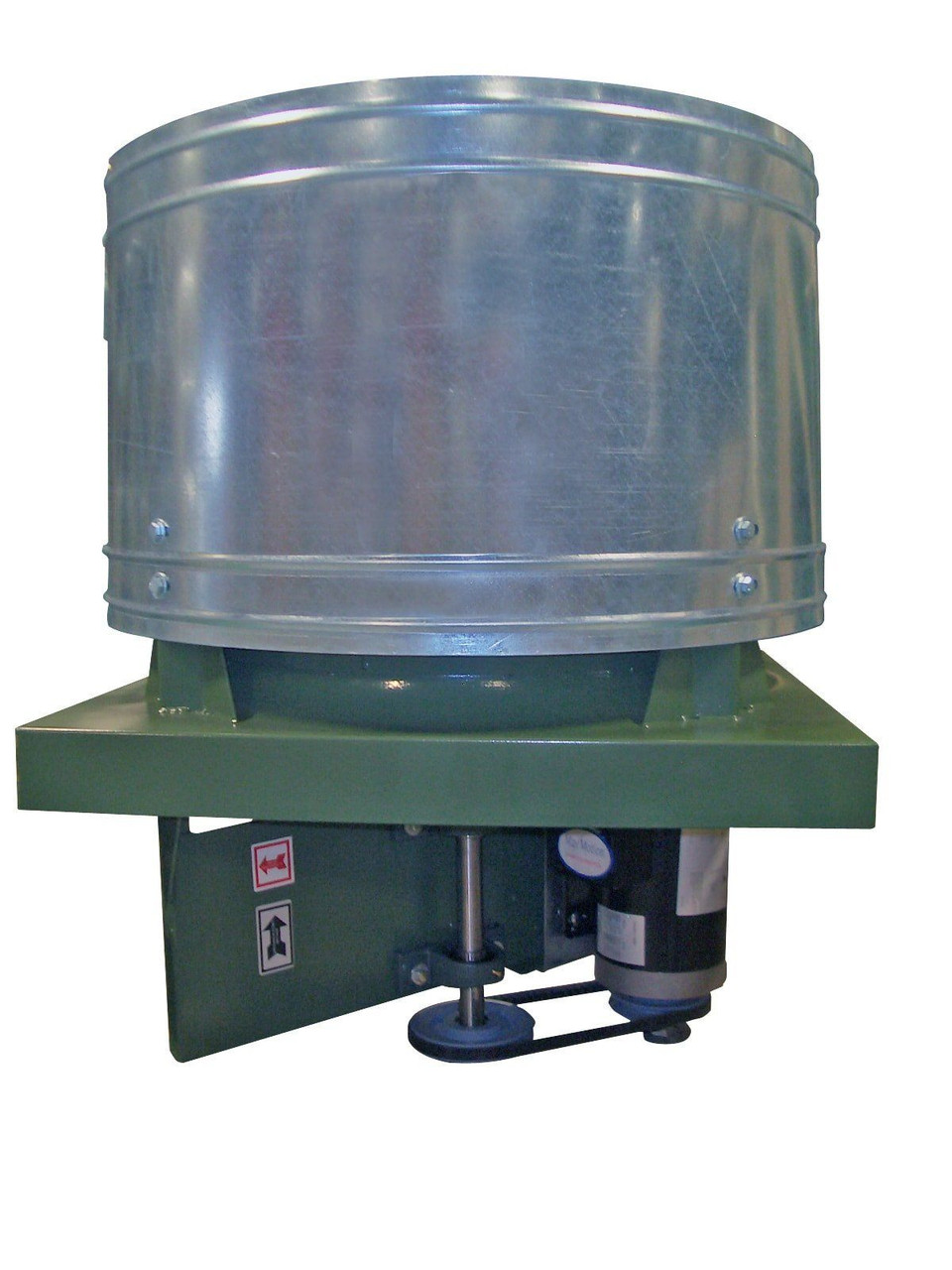

RB Upblast Roof Exhaust Fan 30 inch 14296 CFM Belt Drive 3 Phase RB30T30300M
Canarm
Item #: RB30T30300M
Blade Diameter
30.0"
CFM
14296
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RB Upblast Roof Exhaust Fan 30 inch 14296 CFM Belt Drive 3 Phase RB30T30300M
Amp: 8.8 / 8.2 / 4.1
Blade Diameter: 30.0"
Blade Material: Galvanized Steel
CFM: 14296
Dimensions: 44.5" x 35.5" x 35.5
Drive Type: Belt
Hertz: 60 / 50
Horsepower: 3
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1405
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
