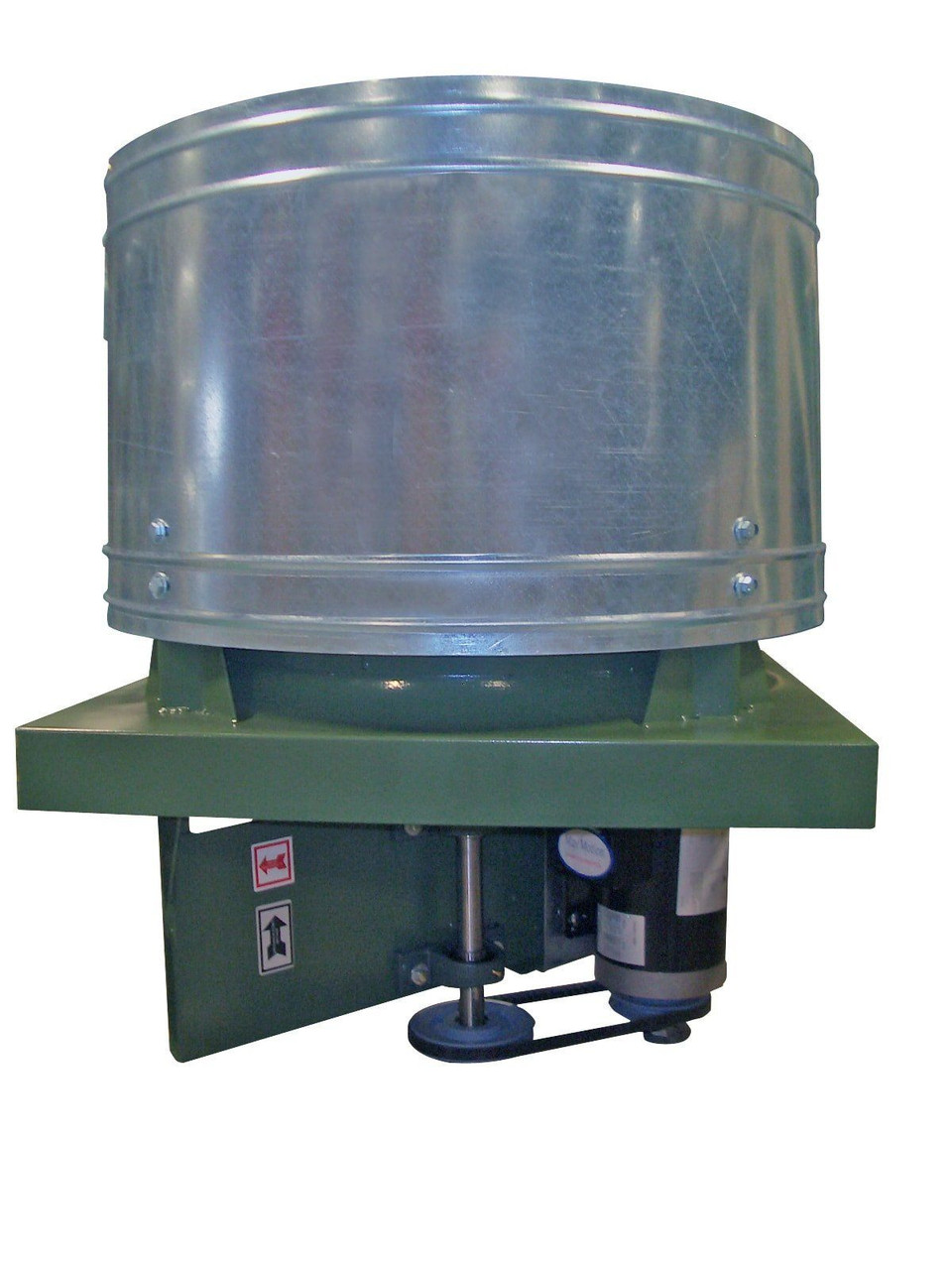

RB Upblast Roof Exhaust Fan 36 inch 12559 CFM Belt Drive 3 Phase RB36T30100M
Canarm
Item #: RB36T30100M
Blade Diameter
36.0"
CFM
12559
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RB Upblast Roof Exhaust Fan 36 inch 12559 CFM Belt Drive 3 Phase RB36T30100M
Amp: 3.6/1.8
Blade Diameter: 36.0"
Blade Material: Galvanized Steel
CFM: 12559

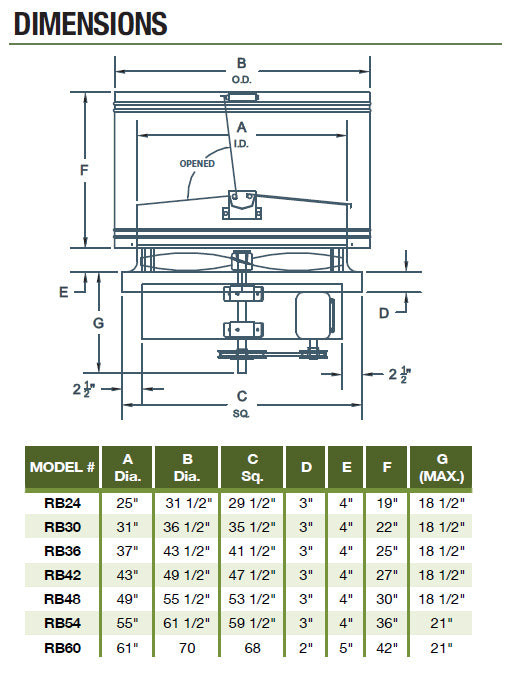

Dimensions: 47.5" x 41.5" x 41.5
Drive Type: Belt
Hertz: 60
Horsepower: 1
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 660
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
