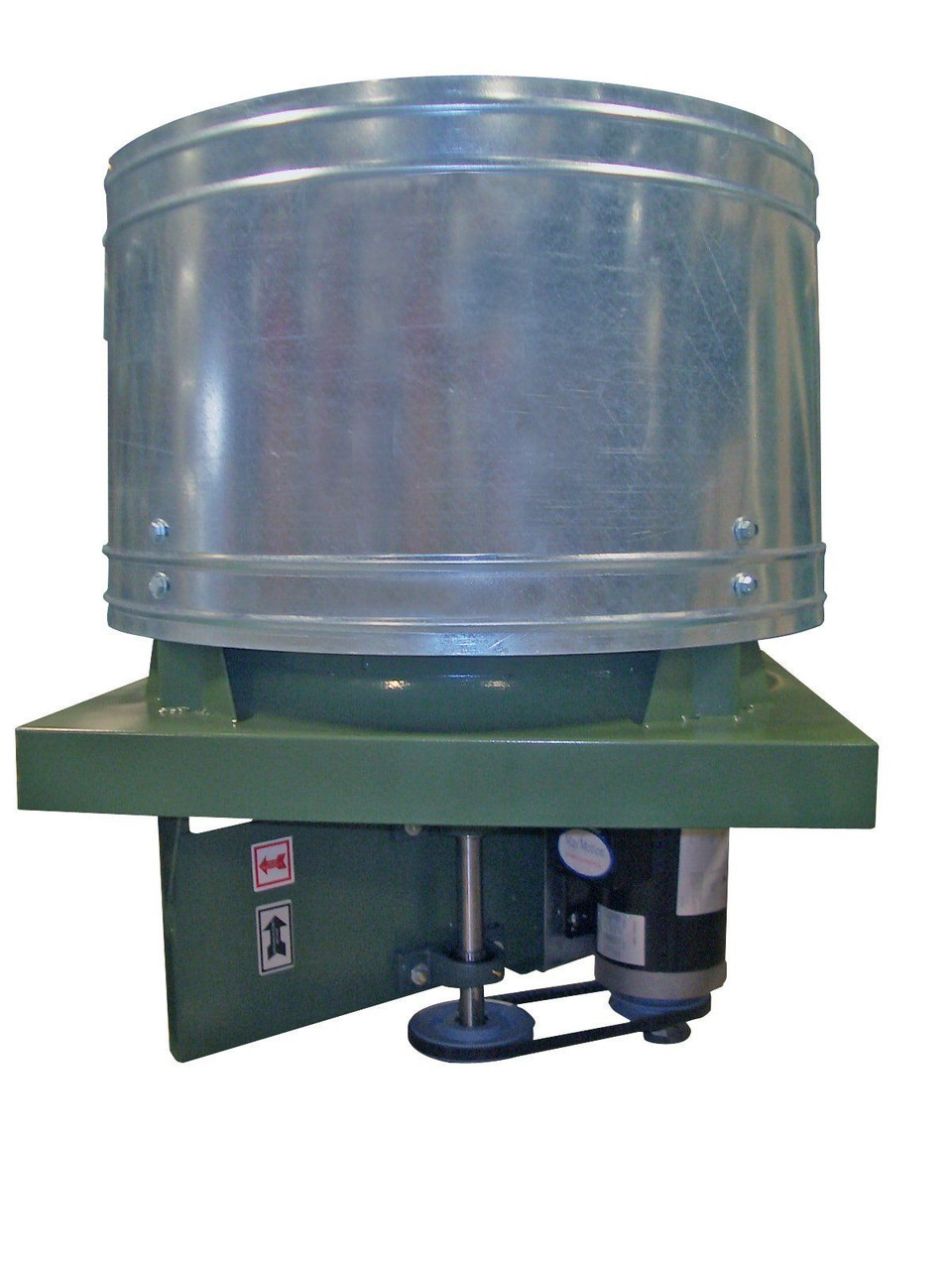

RB Upblast Roof Exhaust Fan 48 inch 36068 CFM Belt Drive RB48T10750
Canarm
Item #: RB48T10750
Blade Diameter
48.0"
CFM
36068
Phase
1 Phase
Voltage
230 AC
Specs for RB Upblast Roof Exhaust Fan 48 inch 36068 CFM Belt Drive RB48T10750
Amp: 21.6
Blade Diameter: 48.0"
Blade Material: Galvanized Steel
CFM: 36068
Dimensions: 52.5" x 53.5" x 53.5
Drive Type: Belt
Hertz: 60
Horsepower: 7 1/2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 870
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
