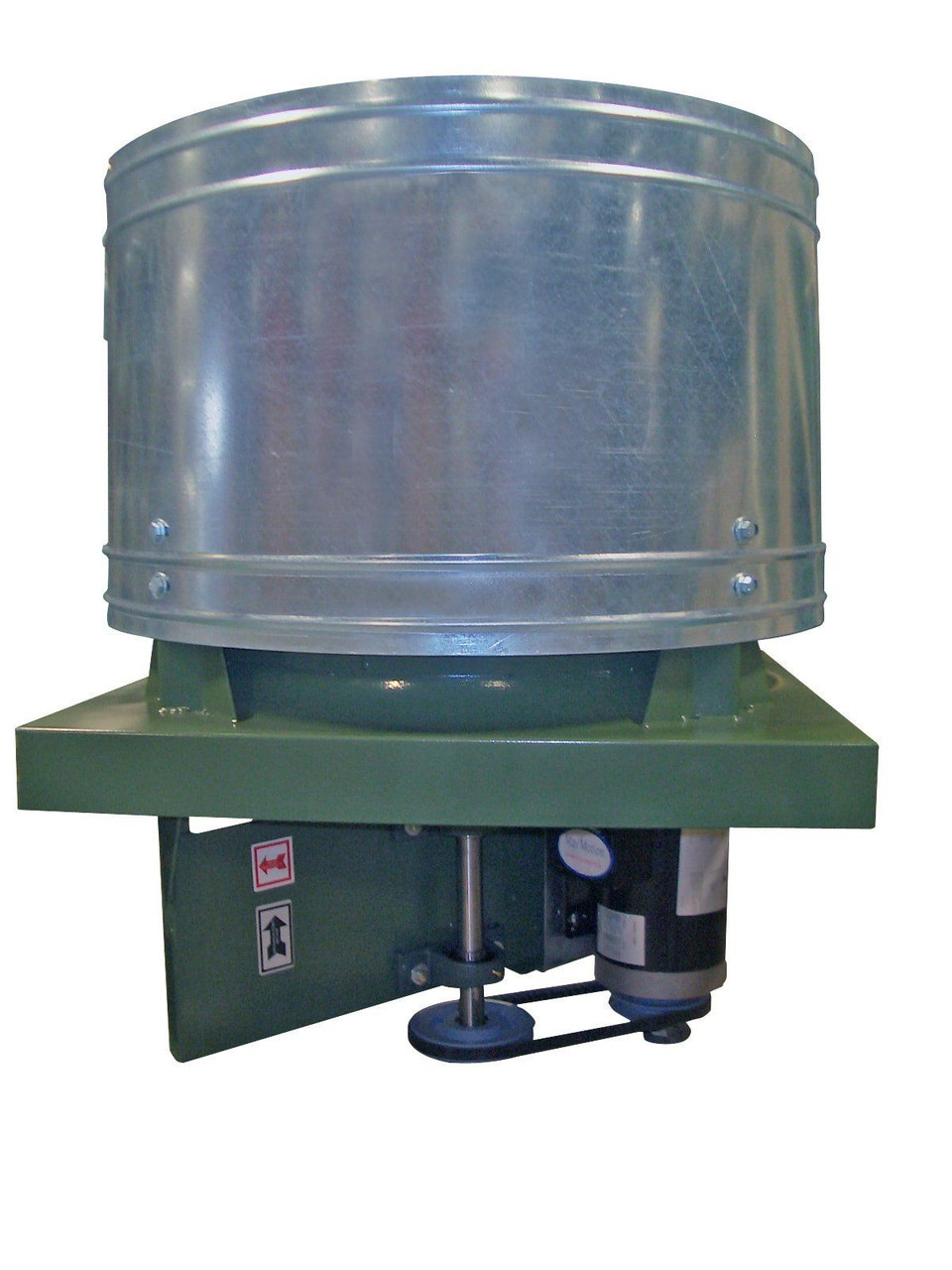

RB Upblast Roof Exhaust Fan 60 inch 61562 CFM Belt Drive 3 Phase RB60T31500M
Canarm
Item #: RB60T31500M
Blade Diameter
60.0"
CFM
61562
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RB Upblast Roof Exhaust Fan 60 inch 61562 CFM Belt Drive 3 Phase RB60T31500M
Amp: 42 / 40 / 20
Blade Diameter: 60.0"
Blade Material: Galvanized Steel
CFM: 61562
Dimensions: 68" x 68" x 68
Drive Type: Belt
Hertz: 60 / 50
Horsepower: 15
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 745
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Sturdily constructed belt drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings
Heavy-duty pulleys and belts.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden application
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
The following file(s) are provided by the manufacturer.
