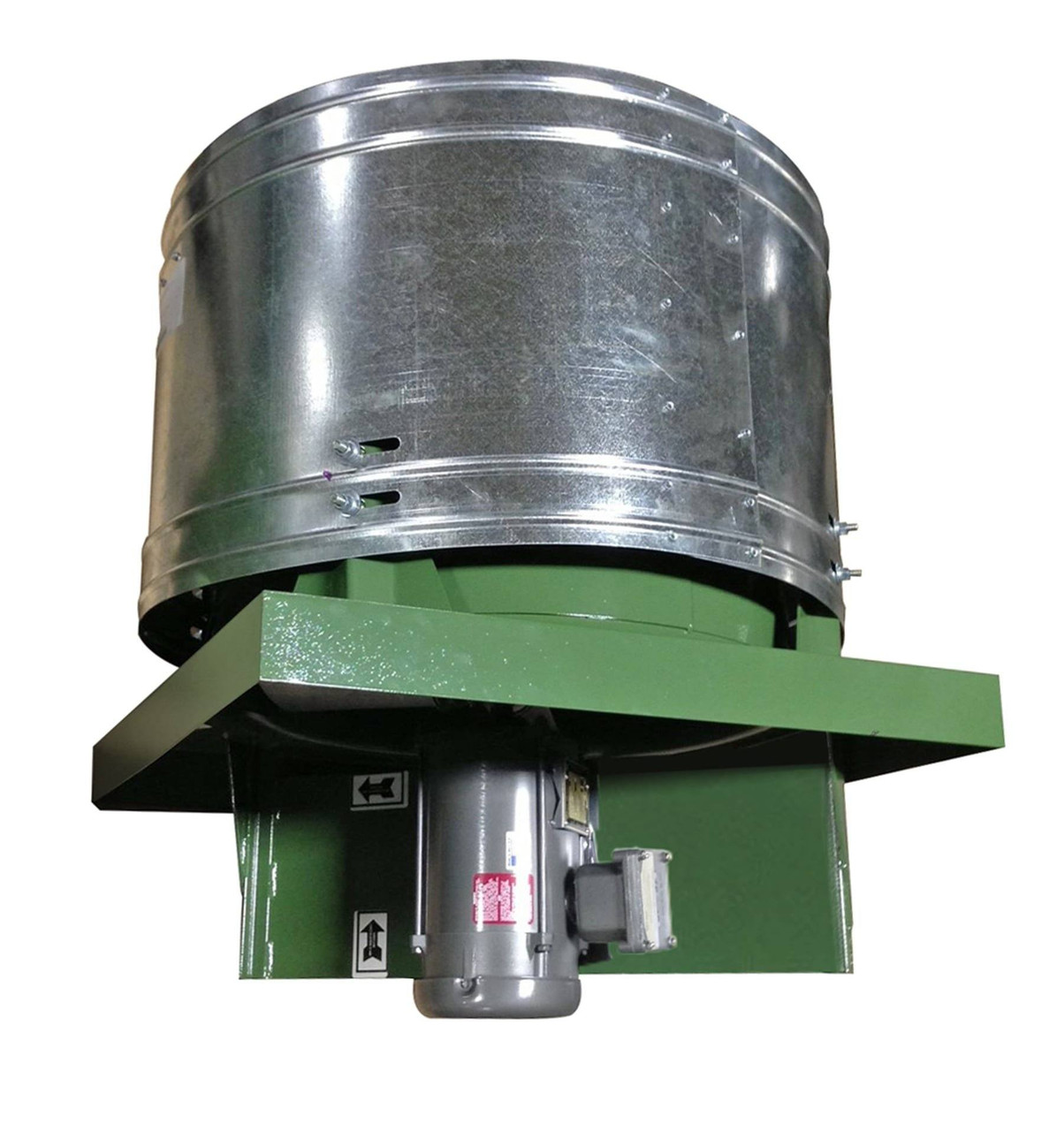

RD Upblast Roof Exhaust Fan 24 inch 9909 CFM Direct Drive RD24T10300B
Canarm
Item #: RD24T10300B
Blade Diameter
24.0"
CFM
9909
Phase
1 Phase
Voltage
230 AC
Specs for RD Upblast Roof Exhaust Fan 24 inch 9909 CFM Direct Drive RD24T10300B
Amp: 8.8 / 8.2 / 4.1
Blade Diameter: 24.0"
Blade Material: Galvanized Steel
CFM: 9909
Dimensions: 26" x 29.5" x 29.5
Drive Type: Direct
Hertz: 60 / 50
Horsepower: 3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1725
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURESSturdily constructed direct drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden applications
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
