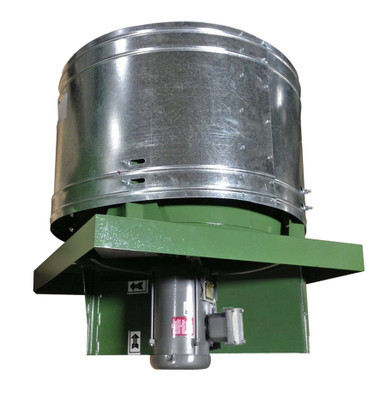

RD Upblast Roof Exhaust Fan 24 inch 6761 CFM Direct Drive 3 Phase RD24T30100BM
Canarm
Item #: RD24T30100BM
Blade Diameter
24.0"
CFM
6761
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RD Upblast Roof Exhaust Fan 24 inch 6761 CFM Direct Drive 3 Phase RD24T30100BM
Amp: 1.8
Blade Diameter: 24.0"
Blade Material: Galvanized Steel
CFM: 6761
Dimensions: 26" x 29.5" x 29.5
Drive Type: Direct
Hertz: 60
Horsepower: 1
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1140
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURESSturdily constructed direct drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden applications
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
