RD Upblast Roof Exhaust Fan 36 inch 16364 CFM Direct Drive 3 Phase RD36T3200DM
Canarm
Item #: RD36T30200DM
Blade Diameter
36.0"
CFM
16364
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RD Upblast Roof Exhaust Fan 36 inch 16364 CFM Direct Drive 3 Phase RD36T3200DM
Amp: 7.6 / 7 / 3.5
Blade Diameter: 36.0"
Blade Material: Galvanized Steel
CFM: 16364

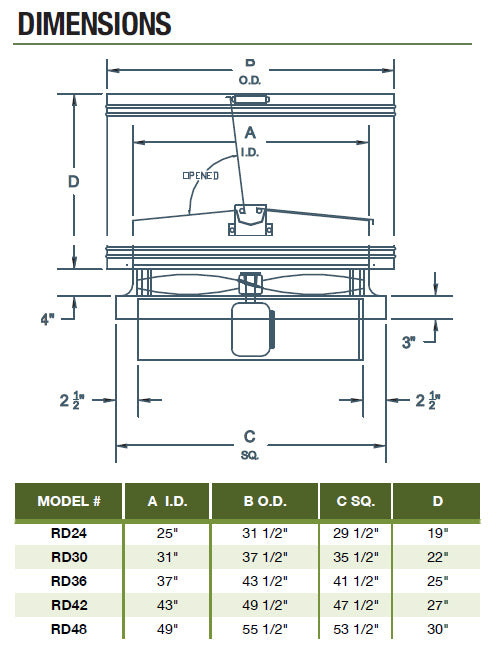

Dimensions: 32" x 41.5" x 41.5
Drive Type: Direct
Hertz: 60
Horsepower: 2
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 860
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURESSturdily constructed direct drive roof exhausters for industrial and commercial applications.
Heavy duty galvanized blades.
Galvanized steel wind-band and rain-proof butterfly dampers.
Totally enclosed ball bearing motors.
Not recommended for dirty or dust laden applications
*dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only.
