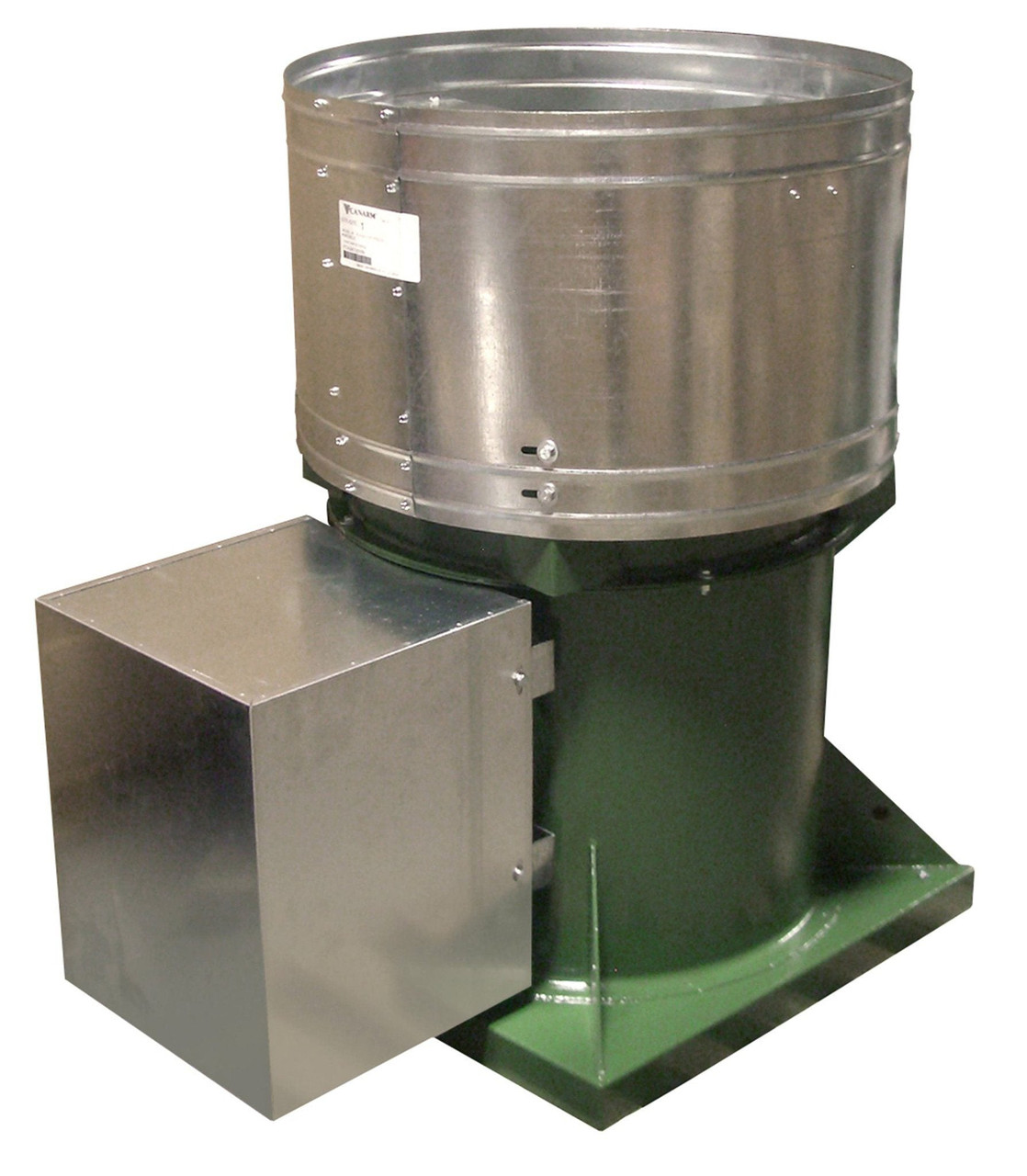

RTA Upblast Roof Exhaust Fan 18 inch 6490 CFM Belt Drive RTA18T10200
Canarm
Item #: RTA18T10200
Blade Diameter
18.0"
CFM
6490
Phase
1 Phase
Voltage
115 / 230 AC
Specs for RTA Upblast Roof Exhaust Fan 18 inch 6490 CFM Belt Drive RTA18T10200
Amp: 6 / 5.6 / 2.8
Blade Diameter: 18.0"
Blade Material: Cast Aluminum
CFM: 6490
Dimensions: 39.5" x 24" x 24
Drive Type: Belt
Hertz: 60
Horsepower: 2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 2510
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURES
Motor out of airstream.
Sturdily constructed belt drive roof exhausters for industrial & commercial applications.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings (out of air stream), complete with external grease fittings.
Cast aluminum blades. 12" to 48", 54 to 60" PPG.
Heavy-duty sheaves and belts out of air stream.
Totally enclosed ball bearing motors (clean dry air, maximum 200° F).
