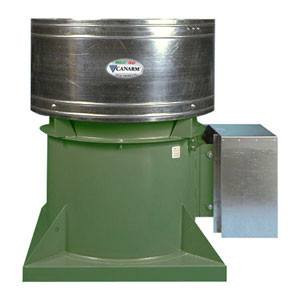

RTA Upblast Roof Exhaust Fan 24 inch 7020 CFM Belt Drive 3 Phase RTA24T30100M
Canarm
Item #: RTA24T30100M
Blade Diameter
24.0"
CFM
7020
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for RTA Upblast Roof Exhaust Fan 24 inch 7020 CFM Belt Drive 3 Phase RTA24T30100M
Amp: 3.4 / 3.6 / 1.8
Blade Diameter: 24.0"
Blade Material: Cast Aluminum
CFM: 7020
Dimensions: 44.5" x 30" x 30
Drive Type: Belt
Hertz: 60
Horsepower: 1
Made in the USA: No
Motor Type: TEFC
Phase: 3 Phase
RPM: 1370
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURES
Motor out of airstream.
Sturdily constructed belt drive roof exhausters for industrial & commercial applications.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings (out of air stream), complete with external grease fittings.
Cast aluminum blades. 12" to 48", 54 to 60" PPG.
Heavy-duty sheaves and belts out of air stream.
Totally enclosed ball bearing motors (clean dry air, maximum 200° F).
The following file(s) are provided by the manufacturer.
