RTA Upblast Roof Exhaust Fan 36 inch 19220 CFM Belt Drive RTA36T10300
Canarm
Item #: RTA36T10300
Blade Diameter
36.0"
CFM
19220
Phase
1 Phase
Voltage
230 AC
Specs for RTA Upblast Roof Exhaust Fan 36 inch 19220 CFM Belt Drive RTA36T10300
Amp: 8.8 / 8.2 / 4.1
Blade Diameter: 36.0"
Blade Material: Cast Aluminum
CFM: 19220

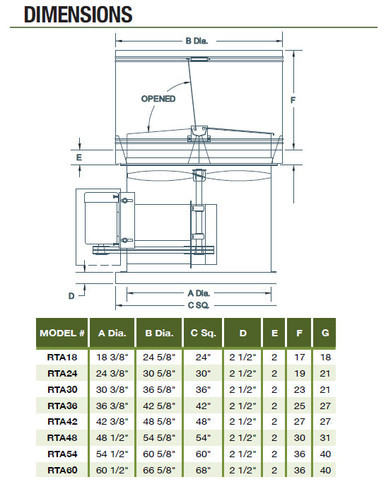

Dimensions: 56.5" x 42" x 42
Drive Type: Belt
Hertz: 60 / 50
Horsepower: 3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1045
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURES
Motor out of airstream.
Sturdily constructed belt drive roof exhausters for industrial & commercial applications.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings (out of air stream), complete with external grease fittings.
Cast aluminum blades. 12" to 48", 54 to 60" PPG.
Heavy-duty sheaves and belts out of air stream.
Totally enclosed ball bearing motors (clean dry air, maximum 200° F).
The following file(s) are provided by the manufacturer.
