RTA Upblast Roof Exhaust Fan 48 inch 33850 CFM Belt Drive RTA48T10750
Canarm
Item #: RTA48T10750
Blade Diameter
48.0"
CFM
33850
Phase
1 Phase
Voltage
230 AC
Specs for RTA Upblast Roof Exhaust Fan 48 inch 33850 CFM Belt Drive RTA48T10750
Amp: 21.6
Blade Diameter: 48.0"
Blade Material: Cast Aluminum
CFM: 33850
Dimensions: 65.5" x 54" x 54
Drive Type: Belt
Hertz: 60
Horsepower: 7 1/2
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1005
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURES
Motor out of airstream.
Sturdily constructed belt drive roof exhausters for industrial & commercial applications.
Galvanized steel wind-band and rain-proof butterfly dampers.
Cast iron pillow block bearings (out of air stream), complete with external grease fittings.
Cast aluminum blades. 12" to 48", 54 to 60" PPG.
Heavy-duty sheaves and belts out of air stream.
Totally enclosed ball bearing motors (clean dry air, maximum 200° F).

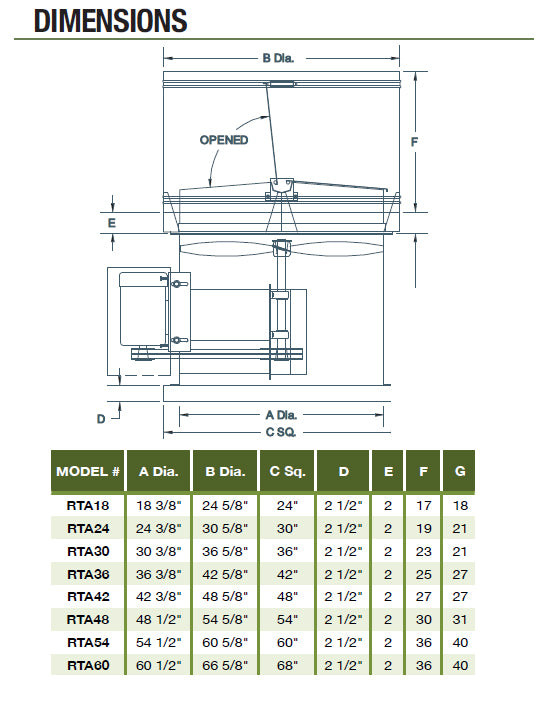

The following file(s) are provided by the manufacturer.
