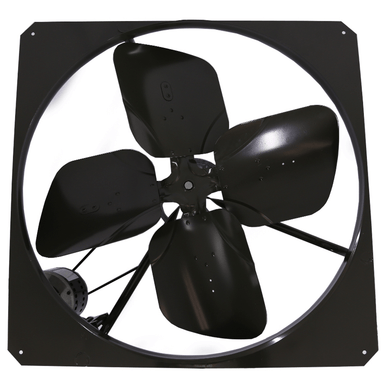

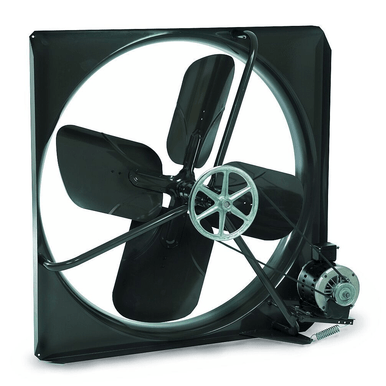

RV Panel Supply Fan 2 Speed 24 inch 3900 CFM Belt Drive RV2422
Triangle Engineering
Item #: RV2422
Blade Diameter
24.0"
CFM
3900
Phase
1 Phase
Voltage
115 AC
Specs for RV Panel Supply Fan 2 Speed 24 inch 3900 CFM Belt Drive RV2422
Amp: 6.5
Blade Diameter: 24.0"
CFM: 3900
Drive Type: Belt
Hertz: 60
Horsepower: 1/3
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 525
Speed(s): 2 Speed
Voltage: 115 AC
Warehouse: Arkansas
Warranty: 1 Year
Triangle’s RV Series Belt Drive Industrial Wall Supply Fans are designed with long lasting performance in mind and are well suited for supplying factories, gymnasiums, and warehouses. Each of our RV Series Industrial Wall Supply Fans come standard with automatic belt tensioning to reduce maintenance and to extend motor and belt life
FEATURES
Belt drive
Rolled venturi for improved airflow
Durable polyester powder coated finish
High quality, heavy duty components
Automatic belt tensioner
